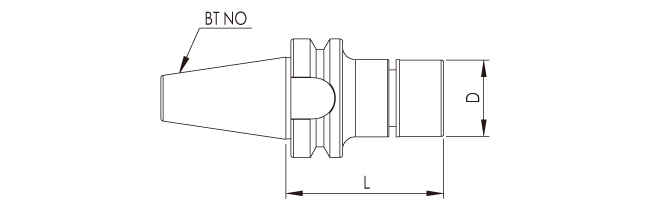

ER-S 彈性筒夾刀桿
應用於：
▼一般銑削 / 鑽孔加工
▼高精度銑削 / 鉸孔加工
使用高速全圓螺帽

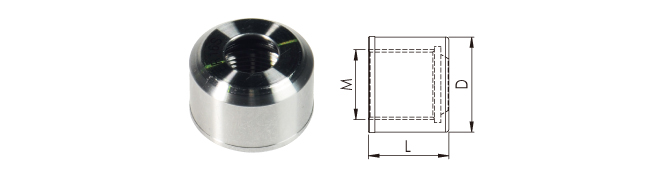

ER-S 高速全圓螺帽
ER-S 高速全圓螺帽
| ORDER NO. | ØD | L | M |
| 訂購編號 | |||
| ER16S | 30 | 19.5 | M22*1.5P |
| ER20S | 35 | 22.0 | M28*1.5P |
| ER25S | 40 | 24.0 | M32*1.5P |
| ER32S | 50 | 26.0 | M40*1.5P |

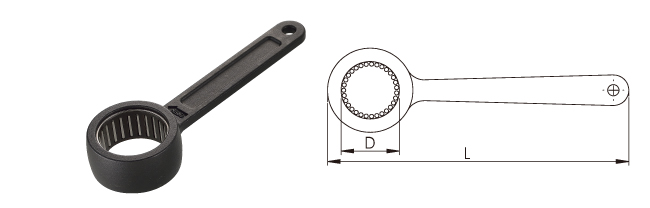

ER-S板手
| ORDER NO. | ØD | L |
| 訂購編號 | ||
| ER16S | 30 | 145 |
| ER20S | 35 | 155 |
| ER25S | 40 | 175 |
| ER32S | 50 | 195 |
| ORDER NO. | RANGE | ØD | L | NUT | WRENCH |
| 訂購編號 | 夾持範圍 | 螺帽 | 板手 | ||
| BT30-ER16-060S | Ø 1 - 10 | 30 | 60 | ER16S | ER16S |
| BT30-ER16-100S | 100 | ||||
| BT30-ER20-060S | Ø 1 - 13 | 35 | 60 | ER20S | ER20S |
| BT30-ER20-100S | 100 | ||||
| BT30-ER25-060S | Ø 2 - 16 | 40 | 60 | ER25S | ER25S |
| BT30-ER25-100S | 100 | ||||
| BT30-ER32-060S | Ø 3 - 20 | 50 | 60 | ER32S | ER32S |
| BT30-ER32-100S | 100 |
| ORDER NO. | RANGE | ØD | L | NUT | WRENCH |
| 訂購編號 | 夾持範圍 | 螺帽 | 板手 | ||
| BT40-ER16-060S | Ø 1 - 10 | 30 | 70 | ER16S | ER16S |
| BT40-ER16-100S | 100 | ||||
| BT40-ER20-060S | Ø 1 - 13 | 35 | 70 | ER20S | ER20S |
| BT40-ER20-100S | 100 | ||||
| BT40-ER25-060S | Ø 2 - 16 | 40 | 70 | ER25S | ER25S |
| BT40-ER25-100S | 100 | ||||
| BT40-ER32-060S | Ø 3 - 20 | 50 | 70 | ER32S | ER32S |
| BT40-ER32-100S | 100 |
