ER-M彈性筒夾刀桿
應用於：
▼一般銑削 / 鑽孔加工
▼小徑剛性攻牙
使用M型小徑螺帽

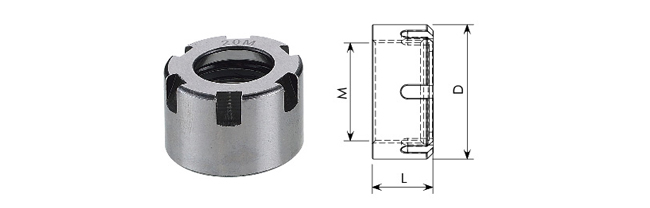

ER-M螺帽
ER-M螺帽
| ORDER NO. | ØD | L | M |
| 訂購編號 | |||
| ER11M | 16 | 12.0 | M13*0.75P |
| ER16M | 22 | 17.0 | M19*1.0P |
| ER20M | 28 | 19.0 | M24*1.0P |

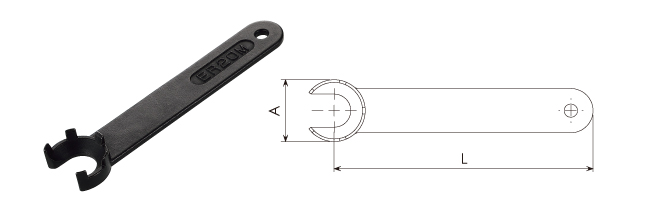

ER-M板手
| ORDER NO. | A | L |
| 訂購編號 | ||
| ER11M | 17.0 | 103 |
| ER16M | 22.5 | 120 |
| ER20M | 28.5 | 129 |
|
ORDER NO. 訂購編號 |

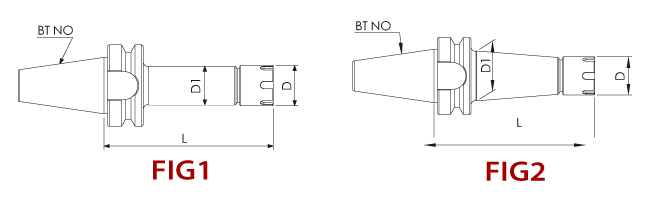

FIG |
RANGE 夾持範圍 |
ØD | Ød | L | G |
NUT 螺帽 |
WRENCH 板手 |
| BT30-ER11-060M | 1 | Ø 1 - 7 | 16 | 16 | 70 | M08*P1.0 | ER11M | ER11M |
| BT30-ER11-100M | 2 | 19 | 100 | |||||
| BT30-ER16-070M | 1 | Ø 1 - 10 | 22 | 22 | 70 | M11*P1.0 | ER16M | ER16M |
| BT30-ER16-100M | 2 | 25 | 100 | |||||
| BT30-ER20-070M | 1 | Ø 1 - 13 | 28 | 28 | 70 | M14*P1.0 | ER20M | ER20M |
| BT30-ER20-100M | 2 | 32 | 100 |
|
ORDER NO. 訂購編號 |
FIG |
RANGE 夾持範圍 |
ØD | ØD1 | L | G |
NUT 螺帽 |
WRENCH 板手 |
| BT40-ER11-070M | 1 | Ø 1 - 7 | 16 | 16 | 70 | M08*P1.0 | ER11M | ER11M |
| BT40-ER11-100M | 2 | 20 | 100 | |||||
| BT40-ER11-150M | 150 | |||||||
| BT40-ER16-070M | 1 | Ø 1 - 10 | 22 | 22 | 70 | M11*P1.0 | ER16M | ER16M |
| BT40-ER16-100M | 100 | |||||||
| BT40-ER20-070M | 1 | Ø 1 - 13 | 28 | 28 | 70 | M14*P1.0 | ER20M | ER20M |
| BT40-ER20-100M | 100 |
|
ORDER NO. 訂購編號 |
FIG |
RANGE 夾持範圍 |
ØD | ØD1 | L | G |
NUT 螺帽 |
WRENCH 板手 |
| BT50-ER16-105M | 1 | Ø 1- 10 | 22 | 22 | 105 | M11*P1.0 | ER16M | ER16M |
| BT50-ER16-135M | 2 | 25 | 135 | |||||
| BT50-ER16-165M | 28 | 165 | ||||||
| BT50-ER20-105M | 1 | Ø 1 - 13 | 28 | 28 | 105 | M14*P1.0 | ER20M | ER20M |
| BT50-ER20-135M | 2 | 30 | 135 | |||||
| BT50-ER20-165M | 32 | 165 |
