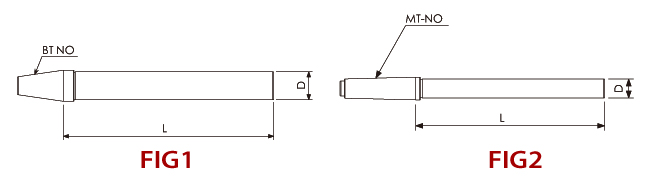

ORDER NO. | FIG | ØD | L | RUN-OUT | CIRCULARITY |
訂購編號 | 偏擺精度 | 真圓度 | |||
BT30-30-250 | 1 | 30 | 250 | 0.003 | 0.001 |
BT40-40-300 | 40 | 300 | 0.003 | 0.001 | |
BT50-40-300 | 40 | 300 | 0.003 | 0.001 | |
BT50-50-300 | 50 | 300 | 0.003 | 0.001 |
ORDER NO. | FIG | ØD | L | RUN-OUT | CIRCULARITY |
訂購編號 | 偏擺精度 | 真圓度 | |||
MT1-11-200 | 2 | 11 | 200 | 0.003 | 0.001 |
MT2-16-200 | 16 | 200 | 0.003 | 0.001 | |
MT3-20-200 | 20 | 200 | 0.003 | 0.001 | |
MT4-30-300 | 30 | 300 | 0.003 | 0.001 | |
MT5-40-350 | 40 | 350 | 0.003 | 0.001 |
