FMB面銑刀桿

應用於：
▼平面銑削加工

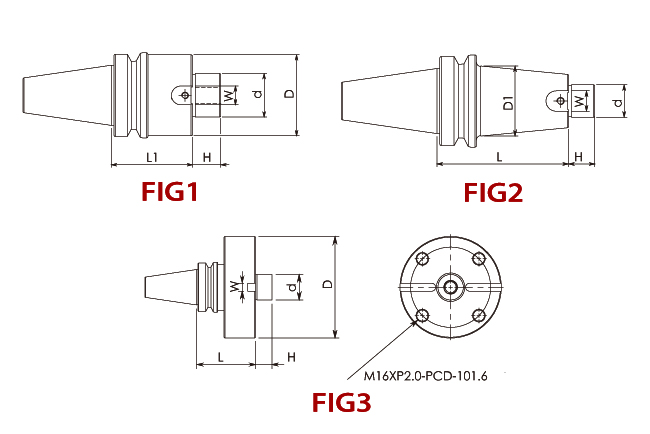

ORDER NO. FIG Ød
H6		 ØD ØD1 L H W Ｇ
訂購編號
BT30-FMB22-045 1 22 45 45 45 18 10 M10
BT30-FMB22-060 60
BT30-FMB27-045 1 27 45 45 45 20 12 M12
BT30-FMB27-060 60
BT30-FMB32-060 1 32 58 58 60 21 14 M16
BT40-FMB22-045 2 22 45 48 45 18 10 M10
BT40-FMB22-060 60
BT40-FMB22-075 75
BT40-FMB22-090 50 90
BT40-FMB22-105 105
BT40-FMB22-150 150
BT40-FMB22-200 200
BT40-FMB22-250 52 250
BT40-FMB22-300 300
BT40-FMB27-045 1 27 55 55 45 20 12 M12
BT40-FMB27-060 60
BT40-FMB27-075 75
BT40-FMB27-090 2 60 90
BT40-FMB27-105 105
BT40-FMB32-060 1 32 60 60 60 21 14 M16
BT40-FMB40-060 1 40 78 78 60 23 16 M16
ORDER NO. Fig Ød
H6		 ØD ØD1 L H W Ｇ
訂購編號
BT50-FMB22-045 1 22 58 58 45 18 10 M10
BT50-FMB22-060 48 48 60
BT50-FMB22-075 75
BT50-FMB22-090 90
BT50-FMB22-105 2 50 105
BT50-FMB22-125 125
BT50-FMB22-150 150
BT50-FMB22-150P 54 150
BT50-FMB22-150H 58 62 150
BT50-FMB22-200 48 50 200
BT50-FMB22-200P 56 200
BT50-FMB22-200H 58 62 200
BT50-FMB22-250 48 50 250
BT50-FMB22-250P 58 250
BT50-FMB22-250H 58 62 250
BT50-FMB22-300 48 50 300
BT50-FMB22-300P 57 300
BT50-FMB22-300H 58 62 300
BT50-FMB22-350 48 50 350
BT50-FMB22-350P 58 350
BT50-FMB22-350H 58 62 350
BT50-FMB22-400 48 50 400
BT50-FMB22-400P 60 400
BT50-FMB22-400H 58 62 400
BT50-FMB22-450 48 450
BT50-FMB22-450H 58 450
BT50-FMB22-500 48 500
BT50-FMB22-500H 58 500
BT50-FMB27-060 1 27 60 60 60 20 12 M12
BT50-FMB27-075 75
BT50-FMB27-090 2 65 90
BT50-FMB27-105 105
BT50-FMB27-125 125
BT50-FMB27-150 150
BT50-FMB27-200 200
BT50-FMB32-060 1 32 70 70 60 21 14 M16
BT50-FMB32-075 75
BT50-FMB32-090 90
BT50-FMB32-105 2 75 105
BT50-FMB32-125 125
BT50-FMB32-150 150
BT50-FMB32-200 200
BT50-FMB40-060 1 40 80 80 60 23 16
BT50-FMB40-075 75
BT50-FMB40-090 90
BT50-FMB40-105 105
BT50-FMB40-125 2 85 125
BT50-FMB40-150 150
BT50-FMB60-075 3 60 128 128 75 32 25.4 　-------
　　　
