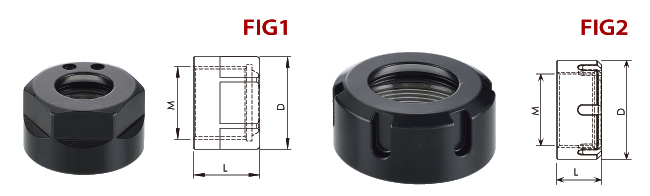

ORDER NO. | ØD | L | M | FIG |
訂購編號 | ||||
ER11A | 19 | 11.3 | M14* 0.75P | 1 |
ER16A | 28 | 18.5 | M22*1.5P | |
ER20A | 34 | 20.0 | M25*1.5P | |
ER25-UM/RD | 42 | 21.5 | M32*1.5P | 2 |
ER32-UM/RD | 50 | 23.0 | M40*1.5P | |
ER40-UM/RD | 63 | 29.0 | M50*1.5P |

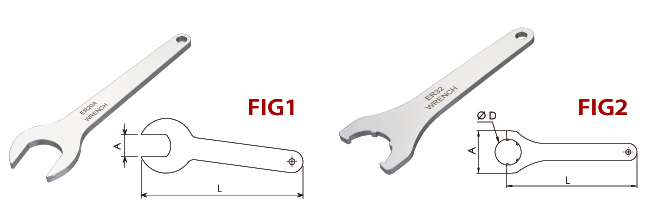

ORDER NO. | A | ØD | L | FIG |
訂購編號 | ||||
ER11A | 17.0 | ---------------------- | 120 | 1 |
ER16A | 25.0 | 140 | ||
ER20A | 30.0 | 200 | ||
ER25-UM/RD | 64.0 | 42 | 190 | 2 |
ER32-UM/RD | 74.0 | 50 | 215 | |
ER40-UM/RD | 86.5 | 63 | 230 |

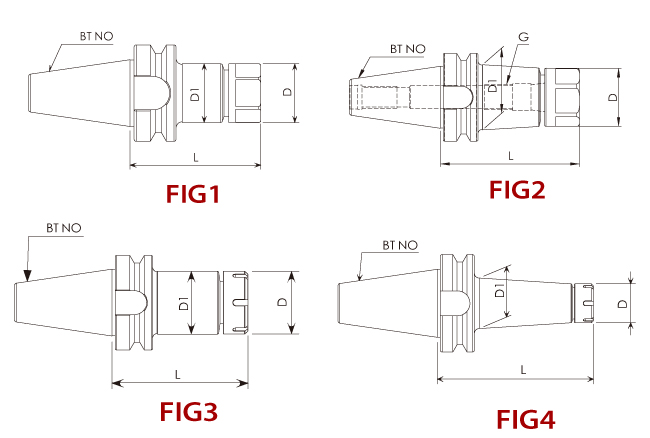

ORDER NO. | FIG | RANGE | ØD | ØD1 | L | G | NUT | WRENCH | |
訂購編號 | 夾持範圍 | 螺帽 | 板手 | ||||||
BT30-ER11-060 | 1 | Ø 1- 7 | 19 | 19 | 60 | M08*P1.0 | ER11A | ER11A | |
BT30-ER11-100 | 2 | 22 | 100 | ||||||
BT30-ER16-060 | 1 | Ø 1- 10 | 28 | 28 | 60 | M11*P1.0 | ER16A | ER16A | |
BT30-ER16-070 | 70 | ||||||||
BT30-ER16-100 | 100 | ||||||||
BT30-ER20-060 | 1 | Ø 1- 13 | 34 | 34 | 60 | M14*P1.0 | ER20A | ER20A | |
BT30-ER20-070 | 70 | ||||||||
BT30-ER20-100 | 100 | ||||||||
BT30-ER25-060 | 3 | Ø 1- 13 | 42 | 42 | 60 | M18*P1.5 | ER25UM | ER25UM | |
BT30-ER25-100 | 100 | ||||||||
BT30-ER32-060 | 3 | Ø 3- 20 | 50 | 50 | 60 | M24*P1.5 | ER32UM | ER32UM | |
BT30-ER32-100 | 100 | ||||||||
BT40-ER11-070 | 1 | Ø 1- 7 | 19 | 19 | 70 | M08*P1.0 | ER11A | ER11A | |
BT40-ER11-100 | 100 | ||||||||
BT40-ER16-070 | 1 | Ø 1- 10 | 28 | 28 | 70 | M11*P1.0 | ER16A | ER16A | |
BT40-ER16-100 | 100 | ||||||||
BT40-ER16-125 | 125 | ||||||||
BT40-ER16-150 | 2 | 32 | 150 | ||||||
BT40-ER16-200 | 34 | 200 | |||||||
BT40-ER20-070 | 1 | Ø 1- 13 | 34 | 34 | 70 | M14*P1.0 | ER20A | ER20A | |
BT40-ER20-100 | 100 | ||||||||
BT40-ER20-125 | 125 | ||||||||
BT40-ER20-150 | 2 | 40 | 150 | ||||||
BT40-ER20-200 | 42 | 200 | |||||||
BT40-ER25-070 | 3 | Ø 2 - 16 | 42 | 42 | 70 | M18*P1.5 | ER25UM | ER25UM | |
BT40-ER25-080 | 80 | ||||||||
BT40-ER25-100 | 100 | ||||||||
BT40-ER25-125 | 125 | ||||||||
BT40-ER25-150 | 4 | 48 | 150 | ||||||
BT40-ER25-200 | 50 | 200 | |||||||
BT40-ER32-070 | 3 | Ø 3- 20 | 50 | 50 | 70 | M24*P1.5 | ER32UM | ER32UM | |
BT40-ER32-100 | 100 | ||||||||
BT40-ER32-125 | 125 | ||||||||
BT40-ER32-150 | 4 | 55 | 150 | ||||||
BT40-ER32-150 | 200 | ||||||||
BT40-ER40-080 | 3 | Ø 3 - 26 | 63 | 63 | 80 | M28*P1.5 | ER40UM | ER40UM | |
BT40-ER40-100 | 100 | ||||||||
BT40-ER40-120 | 120 | ||||||||
BT40-ER40-150 | 150 | ||||||||
BT40-ER40-200 | 200 |
ORDER NO. | FIG | RANGE | ØD | ØD1 | L | G | NUT | WRENCH | |
訂購編號 | 夾持範圍 | 螺帽 | 板手 | ||||||
BT50-ER16-100 | 1 | Ø 1- 10 | 28 | 28 | 100 | M11*P1.0 | ER16A | ER16A | |
BT50-ER16-125 | 125 | ||||||||
BT50-ER16-150 | 2 | 32 | 150 | ||||||
BT50-ER16-200 | 34 | 200 | |||||||
BT50-ER16-250 | 36 | 250 | |||||||
BT50-ER20-100 | 1 | Ø 1- 13 | 34 | 34 | 100 | M14*P1.0 | ER20A | ER20A | |
BT50-ER20-125 | 125 | ||||||||
BT50-ER20-150 | 2 | 40 | 150 | ||||||
BT50-ER20-200 | 42 | 200 | |||||||
BT50-ER20-250 | 45 | 250 | |||||||
BT50-ER20-300 | 48 | 300 | |||||||
BT50-ER25-100 | 3 | Ø 2 - 16 | 42 | 42 | 100 | M18*P1.5 | ER25UM | ER25UM | |
BT50-ER25-125 | 125 | ||||||||
BT50-ER25-150 | 150 | ||||||||
BT50-ER25-200 | 4 | 46 | 200 | ||||||
BT50-ER25-250 | 48 | 250 | |||||||
BT50-ER25-300 | 52 | 300 | |||||||
BT50-ER32-080 | 3 | Ø 3- 20 | 50 | 50 | 80 | M24*P1.5 | ER32UM | ER32UM | |
BT50-ER32-100 | 100 | ||||||||
BT50-ER32-125 | 125 | ||||||||
BT50-ER32-150 | 150 | ||||||||
BT50-ER32-200 | 4 | 55 | 200 | ||||||
BT50-ER32-250 | 58 | 250 | |||||||
BT50-ER32-300 | 60 | 300 | |||||||
BT50-ER40-080 | 3 | Ø 3 - 26 | 63 | 63 | 80 | M28*P1.5 | ER40UM | ER40UM | |
BT50-ER40-100 | 100 | ||||||||
BT50-ER40-125 | 125 | ||||||||
BT50-ER40-150 | 150 | ||||||||
BT50-ER40-200 | 4 | 66 | 200 | ||||||
BT50-ER40-250 | 68 | 250 |
