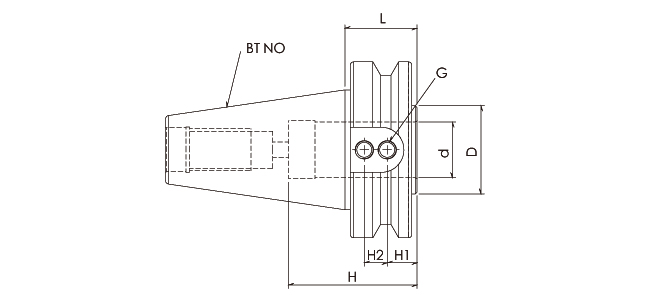

AK短側固式刀桿
| ORDER NO. | Ø d | D | L | H | H1 | H2 | G |
| 訂購編號 | |||||||
| BT40-AK10-041 | 10 | 35 | 41 | 65 | 7.5 | 18 | M8*P1.25 |
| BT40-AK12-041 | 12 | 38 | |||||
| BT40-AK16-041 | 16 | 40 | 70 | ||||
| BT40-AK20-041 | 20 | 45 | 58 | ||||
| BT40-AK25-048 | 25 | 55 | 48 | 65 | 12 | 25 | M10*P1.5 |
| BT40-AK32-048 | 32 | 60 | 70 | ||||
| BT50-AK16-043 | 16 | 50 | 43 | 95 | 19 | 13 | |
| BT50-AK16-063 | 63 | 110 | 16 | 28 | M12*P1.75 | ||
| BT50-AK20-043 | 20 | 43 | 80 | 19 | 13 | M10*P1.5 | |
| BT50-AK20-063 | 63 | 100 | 14 | 31 | M12*P1.75 | ||
| BT50-AK25-043 | 25 | 43 | 70 | 19 | 13 | M10*P1.5 | |
| BT50-AK25-063 | 63 | 95 | 14 | 31 | M14*P2.0 | ||
| BT50-AK32-063 | 32 | 60 | M16*P2.0 | ||||
| BT50-AK40-063 | 40 | 70 | M14*P2.0 | ||||
| BT50-AK42-052 | 42 | 52 | 85 | 7.5 | 25 | M12*P1.75 | |
| BT50-AK42-063 | 63 | 95 | 14 | 31 | M14*P2.0 | ||
| BT50-AK50-068 | 50 | 90 | 68 | 93 | 16 | ||
| BT50-AK50.8-068 | 50.8 | ||||||
| BT50-AK50.8-080 | 80 | 22 | 38 | M16*P2.0 |
