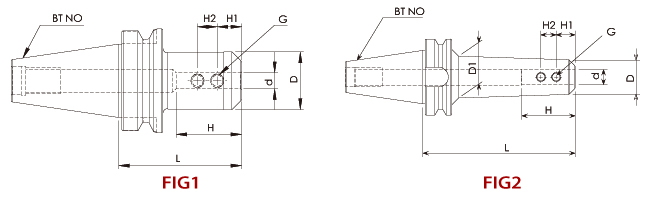

ORDER NO. | FIG | Ød | D | D1 | L | H | H1 | H2 | G |
訂購編號 | |||||||||
BT30-SLA06-060 | 1 | 6 | 25 | 25 | 60 | 32 | 9 | 10 | M6*P1.0 |
BT30-SLA08-060 | 8 | 28 | 28 | 36 | 12 | 12 | M8*P1.25 | ||
BT30-SLA10-060 | 10 | 35 | 35 | 40 | 15 | ||||
BT30-SLA12-060 | 12 | 38 | 38 | 46 | 15 | M10*P1.5 | |||
BT30-SLA16-075 | 16 | 45 | 45 | 75 | 55 | 14 | |||
BT30-SLA20-075 | 20 | 60 | 24 | 20 | M12*P1.75 | ||||
BT30-SLA25-075 | 25 | 66 | |||||||
BT40-SLA06-075 | 6 | 25 | 25 | 32 | 9 | 10 | M6*P1.0 | ||
BT40-SLA06-100 | 100 | ||||||||
BT40-SLA08-075 | 8 | 28 | 28 | 75 | 36 | 12 | 12 | M8*P1.25 | |
BT40-SLA08-100 | 100 | ||||||||
BT40-SLA10-075 | 10 | 35 | 35 | 75 | 40 | 15 | |||
BT40-SLA10-100 | 100 | ||||||||
BT40-SLA12-075 | 12 | 40 | 40 | 75 | 50 | 18 | 16 | M10*P1.5 | |
BT40-SLA12-100 | 100 | ||||||||
BT40-SLA16-075 | 16 | 45 | 45 | 75 | 20 | 18 | |||
BT40-SLA16-100 | 100 | 55 | |||||||
BT40-SLA20-075 | 20 | 50 | 50 | 75 | 64 | 20 | 18 | M12*P1.75 | |
BT40-SLA20-090 | 90 | 25 | 20 | ||||||
BT40-SLA22.225-090 | 22.225 | 68 | 24 | 25 | |||||
BT40-SLA25-090 | 25 | 57 | 57 | M16*P2.0 | |||||
BT40-SLA31.75-090 | 31.75 | 60 | 60 | 70 | 24 | 28 | |||
BT40-SLA32-090 | 32 | 72 | |||||||
BT40-SLA40-105 | 40 | 72 | 72 | 105 | 78 | 24 | 28 | ||
BT40-SLA42-105 | 42 |
ORDER NO. | FIG | Ød | D | D1 | L | H | H1 | H2 | G |
訂購編號 | |||||||||
BT50-SLA06-105 | 1 | 6 | 25 | 25 | 105 | 32 | 9 | 10 | M6*P1.0 |
BT50-SLA06-150 | 2 | 30 | 150 | ||||||
BT50-SLA06-200 | 35 | 200 | |||||||
BT50-SLA08-105 | 1 | 8 | 28 | 28 | 105 | 36 | 12 | 12 | M8*P1.25 |
BT50-SLA08-150 | 2 | 25 | 30 | 150 | 36 | ||||
BT50-SLA08-200 | 35 | 200 | 40 | ||||||
BT50-SLA10-105 | 1 | 10 | 35 | 35 | 105 | 40 | 15 | 12 | |
BT50-SLA10-150 | 2 | 30 | 150 | 45 | |||||
BT50-SLA10-200 | 40 | 200 | |||||||
BT50-SLA12-105 | 1 | 12 | 40 | 105 | 46 | 18 | 16 | M10*P1.5 | |
BT50-SLA12-150 | 2 | 35 | 150 | 55 | |||||
BT50-SLA12-200 | 35 | 45 | 200 | ||||||
BT50-SLA16-105 | 1 | 16 | 45 | 45 | 105 | 50 | 20 | 18 | |
BT50-SLA16-150 | 2 | 40 | 150 | 65 | |||||
BT50-SLA16-200 | 200 | ||||||||
BT50-SLA20-105 | 1 | 20 | 50 | 50 | 105 | 60 | 25 | 20 | M12*P1.75 |
BT50-SLA20-150 | 2 | 45 | 150 | 70 | |||||
BT50-SLA20-200 | 55 | 200 | |||||||
BT50-SLA25-105 | 1 | 25 | 60 | 60 | 105 | 100 | 24 | 24 | M16*P2.0 |
BT50-SLA25-150 | 2 | 55 | 150 | ||||||
BT50-SLA25-200 | 55 | 65 | 200 | ||||||
BT50-SLA32-105 | 1 | 32 | 62 | 62 | 105 | 100 | 24 | 28 | |
BT50-SLA32-150 | 150 | ||||||||
BT50-SLA32-200 | 2 | 60 | 65 | 200 | |||||
BT50-SLA40-120 | 1 | 40 | 80 | 80 | 120 | 90 | 30 | 32 | M20*P2.0 |
BT50-SLA40-150 | 150 | ||||||||
BT50-SLA40-200 | 200 | ||||||||
BT50-SLA42-120 | 42 | 120 | |||||||
BT50-SLA42-150 | 150 | ||||||||
BT50-SLA42-200 | 200 | ||||||||
BT50-SLA50.8-120 | 50.8 | 95 | 95 | 120 |
