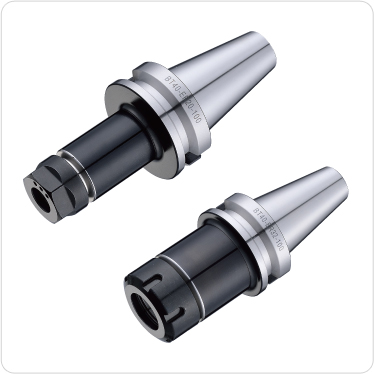

DCM強力型精密銑刀夾頭
應用於：
▼一般銑削加工
▼粗鉸孔加工

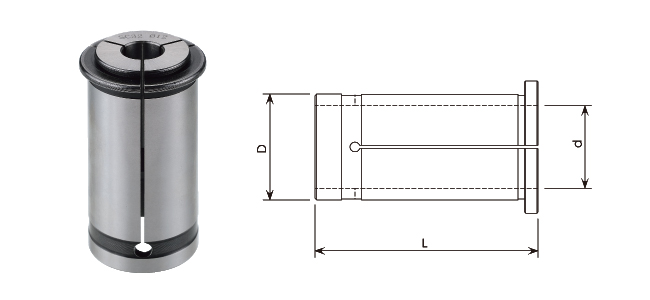

SC直筒夾
SC直筒夾
| ORDER NO. | D | L | Ød | |||
| 訂購編號 | ||||||
| SC20 | 20 | 57 | 4 . 6 . 8 . 10 . 12 . 14 . 16 | |||
| SC25 | 25 | 60 | 6 . 8 . 10 . 12 . 16 . 20 | |||
| SC32 | 32 | 67 | 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15 | |||
| 16. 17. 18. 19. 20. 21. 22. 23. 24. 25 | ||||||
| SC42 | 42 | 76 | 6 . 8 . 10 . 12 . 16 . 20 . 25 . 32 | |||

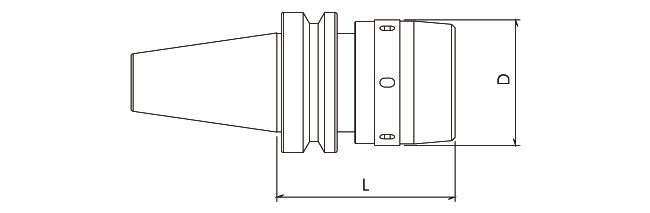

| ORDER NO. | RANGE | Ød | D | L | COLLET | WRENCH |
| 訂購編號 | 夾持範圍 | 筒夾 | 板手 | |||
| BT30-DCM20-085 | Ø 3 - 20 | 52 | 85 | SC20 | DCM20 | |
| BT30-DCM25-085 | Ø 3 - 25 | 58 | SC25 | DCM25 | ||
| BT40-DCM20-085 | Ø 3 - 20 | 52 | SC20 | DCM20 | ||
| BT40-DCM20-105 | 105 | |||||
| BT40-DCM25-085 | Ø 3 - 25 | 58 | 85 | SC25 | DCM25 | |
| BT40-DCM32-090 | Ø 3 - 32 | 68 | 90 | SC32 | DCM32 | |
| BT40-DCM32-105 | 105 | |||||
| BT40-DCM32-135 | 135 | |||||
| BT40-DCM32-150 | 150 | |||||
| BT50-DCM25-105 | Ø 3 - 25 | 58 | 105 | SC25 | DCM25 | |
| BT50-DCM25-135 | 135 | |||||
| BT50-DCM25-150 | 150 | |||||
| BT50-DCM32-105 | Ø 3 - 32 | 68 | 105 | SC32 | DCM32 | |
| BT50-DCM32-135 | 135 | |||||
| BT50-DCM32-150 | 150 | |||||
| BT50-DCM32-165 | 165 | |||||
| BT50-DCM32-200 | 200 | |||||
| BT50-DCM42-110 | Ø 6 - 42 | 84 | 110 | SC42 | DCM42 | |
| BT50-DCM42-165 | 165 | |||||
| BT50-DCM42-200 | 200 | |||||
