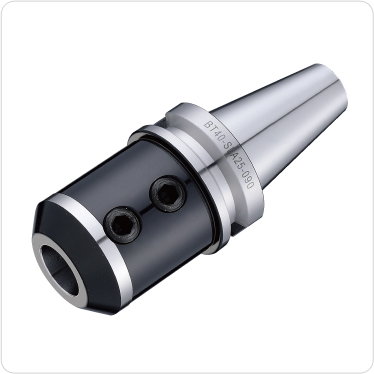

PSK-G高速精密筒夾刀桿
應用於：
▼一般銑削/鑽孔加工
▼高精度銑削/鉸孔加工
偏擺精度：≦0.005mm.
使用高速全圓螺帽
動平衡等級：≦G2.5/30.000RPM(BT30) / ≦G2.5/25.000RPM(BT40)
PSK-G 高速全圓螺帽
PSK-G 高速全圓螺帽
| ORDER NO. | ØD | L | M |
| 訂購編號 | |||
| PSK10G | 30 | 18.0 | M22*1.25P |
| PSK13G | 35 | 21.0 | M28*1.5P |
| PSK16G | 40 | 24.8 | M32*1.5P |
| PSK20G | 50 | 25.0 | M40*1.5P |
| PSK25G | 55 | 26.0 | M45*1.5P |
PSK-G 全圓板手
| ORDER NO. | ØD | L |
| 訂購編號 | ||
| PSK10G | 30 | 145 |
| PSK13G | 35 | 155 |
| PSK16G | 40 | 175 |
| PSK20G | 50 | 195 |
PSK-G 全圓板手 (PAT.P.)
| ORDER NO. | ØD | L |
| 訂購編號 | ||
| PSK10G | 30 | 185 |
| PSK13G | 35 | 185 |
| PSK16G | 40 | 194 |
| PSK20G | 50 | 209 |
| PSK25G | 55 | 214 |

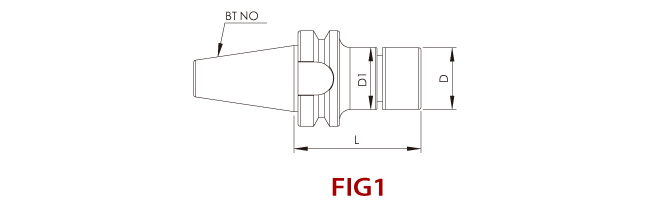

| ORDER NO. | FIG | RANGE | ØD | ØD1 | L | NUT | WRENCH |
| 訂購編號 | 夾持範圍 | 螺帽 | 板手 | ||||
| BT30-PSK10-045G | 1 | Ø 2 - 10 | 30 | 30 | 45 | PSK10G | PSK10G |
| BT30-PSK10-060G | 60 | ||||||
| BT30-PSK10-090G | 90 | ||||||
| BT30-PSK10-130G | 130 | ||||||
| BT30-PSK13-060G | 1 | Ø 3 - 13 | 35 | 35 | 60 | PSK13G | PSK13G |
| BT30-PSK13-075G | 75 | ||||||
| BT30-PSK13-090G | 90 | ||||||
| BT30-PSK13-130G | 130 | ||||||
| BT30-PSK16-060G | 1 | Ø 3 - 16 | 40 | 40 | 60 | PSK16G | PSK16G |
| BT30-PSK16-090G | 90 | ||||||
| BT30-PSK16-130G | 130 | ||||||
| BT30-PSK20-060G | 1 | Ø 3 - 20 | 50 | 50 | 60 | PSK20G | PSK20G |
| BT30-PSK20-090G | 90 | ||||||
| BT30-PSK25-090G | Ø 4 - 25 | 55 | 55 | 90 | PSK25G | PSK25G | |
| BT40-PSK10-060G | 1 | Ø 2 - 10 | 30 | 30 | 60 | PSK10G | PSK10G |
| BT40-PSK10-090G | 90 | ||||||
| BT40-PSK10-120G | 120 | ||||||
| BT40-PSK10-150G | 2 | 34 | 150 | ||||
| BT40-PSK10-165G | 165 | ||||||
| BT40-PSK10-200G | 36 | 200 | |||||
| BT40-PSK13-060G | 1 | Ø 3 - 13 | 35 | 35 | 60 | PSK13G | PSK13G |
| BT40-PSK13-090G | 90 | ||||||
| BT40-PSK13-120G | 120 | ||||||
| BT40-PSK13-150G | 2 | 40 | 150 | ||||
| BT40-PSK13-165G | 165 | ||||||
| BT40-PSK13-200G | 42 | 200 | |||||
| BT40-PSK16-060G | 1 | Ø 3 - 16 | 40 | 40 | 60 | PSK16G | PSK16G |
| BT40-PSK16-090G | 90 | ||||||
| BT40-PSK16-120G | 120 | ||||||
| BT40-PSK16-150G | 2 | 46 | 150 | ||||
| BT40-PSK16-165G | 48 | 165 | |||||
| BT40-PSK16-200G | 50 | 200 | |||||
| BT40-PSK20-060G | 1 | Ø 3 - 20 | 50 | 50 | 60 | PSK20G | PSK20G |
| BT40-PSK20-090G | 90 | ||||||
| BT40-PSK20-120G | 120 | ||||||
| BT40-PSK20-150G | 2 | 55 | 150 | ||||
| BT40-PSK20-200G | 200 | ||||||
| BT40-PSK25-080G | 1 | Ø 4 - 25 | 55 | 55 | 80 | PSK25G | PSK25G |
| BT40-PSK25-120G | 120 | ||||||
| BT40-PSK25-150G | 150 | ||||||
| BT40-PSK25-200G | 200 |
| ORDER NO. | FIG | RANGE | ØD | ØD1 | L | NUT | WRENCH |
| 訂購編號 | 夾持範圍 | 螺帽 | 板手 | ||||
| BT50-PSK10-105G | 1 | Ø 2 - 10 | 30 | 30 | 105 | PSK10G | PSK10G |
| BT50-PSK10-135G | 135 | ||||||
| BT50-PSK10-150G | 2 | 34 | 150 | ||||
| BT50-PSK10-165G | 165 | ||||||
| BT50-PSK10-200G | 36 | 200 | |||||
| BT50-PSK13-105G | 1 | Ø 3 - 13 | 35 | 35 | 105 | PSK13G | PSK13G |
| BT50-PSK13-135G | 135 | ||||||
| BT50-PSK13-150G | 2 | 40 | 150 | ||||
| BT50-PSK13-165G | 165 | ||||||
| BT50-PSK13-200G | 42 | 200 | |||||
| BT50-PSK16-065G | 1 | Ø 3 - 16 | 40 | 40 | 65 | PSK16G | PSK16G |
| BT50-PSK16-105G | 105 | ||||||
| BT50-PSK16-135G | 135 | ||||||
| BT50-PSK16-150G | 150 | ||||||
| BT50-PSK16-165G | 2 | 46 | 165 | ||||
| BT50-PSK16-200G | 200 | ||||||
| BT50-PSK16-250G | 48 | 250 | |||||
| BT50-PSK16-300G | 52 | 300 | |||||
| BT50-PSK20-105G | 1 | Ø 3 - 20 | 50 | 50 | 105 | PSK20G | PSK20G |
| BT50-PSK20-135G | 135 | ||||||
| BT50-PSK20-150G | 150 | ||||||
| BT50-PSK20-165G | 2 | 55 | 165 | ||||
| BT50-PSK20-200G | 200 | ||||||
| BT50-PSK20-250G | 58 | 250 | |||||
| BT50-PSK20-300G | 60 | 300 | |||||
| BT50-PSK25-105G | 1 | Ø 4 - 25 | 55 | 55 | 105 | PSK25G | PSK25G |
| BT50-PSK25-135G | 135 | ||||||
| BT50-PSK25-150G | 150 | ||||||
| BT50-PSK25-165G | 2 | 60 | 165 | ||||
| BT50-PSK25-200G | 200 | ||||||
| BT50-PSK25-250G | 62 | 250 | |||||
| BT50-PSK25-300G | 64 | 300 |
