首頁 > 產品介紹 > 刀桿系列 > FMA面銑刀桿
FMA面銑刀桿

應用於：
▼平面銑削加工

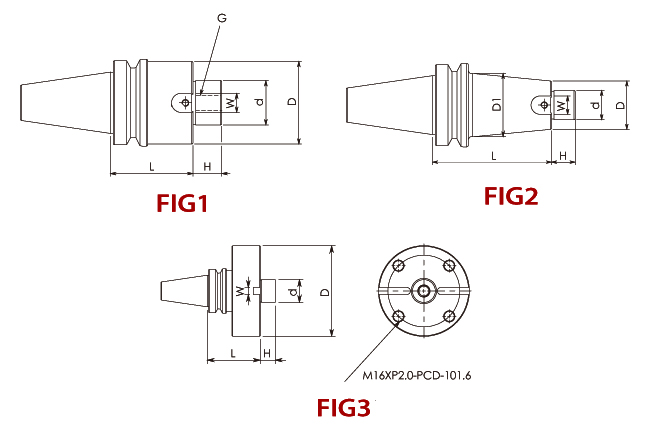

ORDER NO. FIG Ød
H6		 ØD ØD1 L H W G
訂購編號
BT30-FMA25.4-045 1 25.4 45 45 45 19 9.5 M12
BT30-FMA25.4-060 60
BT40-FMA25.4-045 1 25.4 48 48 45 19 9.5 M12
BT40-FMA25.4-060 60
BT40-FMA25.4-075 75
BT40-FMA25.4-090 90
BT40-FMA25.4-105 2 54 105
BT40-FMA25.4-125 125
BT40-FMA25.4-150 58 150
BT40-FMA25.4-200 200
BT40-FMA31.75-045 1 31.75 60 60 45 21 12.7 M12
BT40-FMA31.75-060 60
BT40-FMA31.75-075 75
BT40-FMA31.75-090 90
BT40-FMA31.75-105 105
BT40-FMA31.75-125 125
BT40-FMA31.75-150 150
BT40-FMA31.75-200 200
BT40-FMA38.1-060 1 38.1 78 78 60 23 15.9 M16
BT50-FMA25.4-045 1 25.4 60 60 45 19 9.5 M12
BT50-FMA25.4-060 58 58 60
BT50-FMA25.4-075 2 58 62 75
BT50-FMA25.4-075P 48 50 75
BT50-FMA25.4-090 58 62 90
BT50-FMA25.4-090P 48 50 90
BT50-FMA25.4-105 58 62 105
BT50-FMA25.4-105P 48 50 105
BT50-FMA25.4-125 58 62 125
BT50-FMA25.4-125P 48 50 125
BT50-FMA25.4-150 58 62 150
BT50-FMA25.4-150P 48 51 150
BT50-FMA25.4-200 58 62 200
BT50-FMA25.4-200P 48 53 200
BT50-FMA25.4-250 58 62 250
BT50-FMA25.4-250P 48 55 250
BT50-FMA25.4-300 58 62 300
BT50-FMA25.4-300P 48 56 300
BT50-FMA25.4-350 58 62 350
BT50-FMA25.4-350P 48 58 350
BT50-FMA25.4-400 58 62 400
BT50-FMA25.4-400P 48 60 400
BT50-FMA25.4-450 58 62 450
BT50-FMA25.4-450P 48 62 4510
BT50-FMA25.4-500 58 62 500
BT50-FMA25.4-500P 48 62 500
BT50-FMA31.75-045 1 31.75 70 70 45 21 12.7 M12               M16
BT50-FMA31.75-075 75
BT50-FMA31.75-075P 2 60 65 75
BT50-FMA31.75-090 1 70 70 90
BT50-FMA31.75-105 105
BT50-FMA31.75-105P 2 60 65 105
BT50-FMA31.75-125 70 75 125
BT50-FMA31.75-150 150
BT50-FMA31.75-150P 60 65 150
BT50-FMA31.75-200 70 75 200
BT50-FMA31.75-250 250
BT50-FMA31.75-300 300
BT50-FMA38.1-045 1 38.1 82 82 45 23 15.9 M16
BT50-FMA38.1-075 80 80 75
BT50-FMA38.1-105 105
BT50-FMA38.1-125 2 80 85 125
BT50-FMA38.1-150 150
BT50-FMA38.1-200 200
BT50-FMA50.8-045 1 50.8 95 95 45 24 19 M16
BT50-FMA50.8-075 75
BT50-FMA50.8-105 105
BT50-FMA50.8-125 125
BT50-FMA50.8-150 150
BT50-FMA47.625-075 3 47.625 128 128 75 32 25.4 　--------
BT50-FMA47.625-150 150
　　　
