TYPE |
Shank |
F |
Ød |
ØD |
L |
Weight |
|

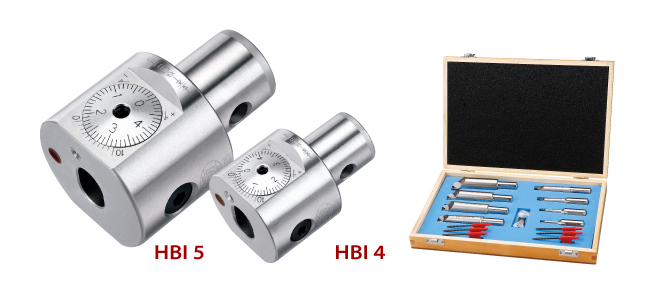

HBI 4 |
AD4 |
0~2.0 |
10 |
39 |
32 |
0.45KG |
|
HBI 5 |
AD5 |
0~3.5 |
12 |
50 |
40 |
0.80KG |
|
HBI 6 |
AD6 |
0~5.0 |
16 |
64 |
48 |
1.50KG |
HBI-4
|

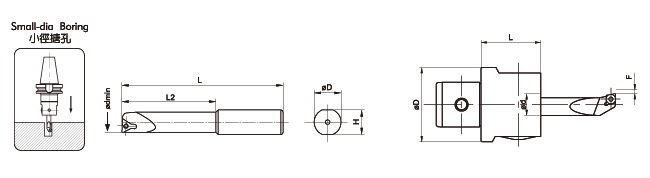

TYPE |
ØD |
Ød (Range) |
L |
L2 |
H |
Insert |
Screw |
Wrench |
|
BJ1008-32 |
10 |
8~10 |
64 |
32 |
9 |
TB..0601.. |
MS2005A |
T6 |
|
BJ1010-40 |
10~12 |
72 |
40 |
|||||
|
BJ1012-45 |
12~16 |
77 |
27 |
TP..0902.. |
MS2506A |
T9 |
||
|
BJ1016-45 |
16~20 |
|||||||
|
BJ1020-45 |
20~25 |
|||||||
|
*BJ10-5PCS |
BJ1008-32 BJ1010-40 BJ1012-45 BJ1016-45 BJ1020-45 |
|||||||
HBI-5
|
TYPE |
ØD |
Ød (Range) |
L |
L2 |
H |
Insert |
Screw |
Wrench |
|
BJ1208-32 |
12 |
8~10 |
64 |
32 |
11 |
TB..0601.. |
MS2005A |
T6 |
|
BJ1210-40 |
10~12 |
72 |
40 |
|||||
|
BJ1212-45 |
12~16 |
77 |
45 |
TP..0902.. |
MS2506A |
T9 |
||
|
BJ1216-45 |
16~20 |
22 |
||||||
|
BJ1220-45 |
20~25 |
25 |
TP..1103.. |
MS3008A |
||||
|
*BJ12-5PCS |
BJ1208-32 BJ1210-40 BJ1212-45 BJ1216-45 BJ1220-45 |
|||||||
HBI-6
|
TYPE |
ØD |
Ød (Range) |
L |
L2 |
H |
Insert |
Screw |
Wrench |
|
BJ1608-32 |
16 |
8~10 |
74 |
32 |
15 |
TB..0601.. |
MS2005A |
T6 |
|
BJ1610-40 |
10~12 |
75 |
40 |
|||||
|
BJ1612-53 |
12~16 |
85 |
53 |
TP..0902.. |
MS2506A |
T9 |
||
|
BJ1616-68 |
16~20 |
100 |
68 |
|||||
|
BJ1620-83 |
20~25 |
115 |
35 |
TP..1103.. |
MS3008A |
|||
|
BJ1625-90 |
25~30 |
122 |
40 |
|||||
|
BJ1630-90 |
30~40 |
122 |
40 |
|||||
|
BJ1640-90 |
40~50 |
122 |
40 |
|||||
|
*BJ16-8PCS |
BJ1608-32 BJ1610-40 BJ1612-53 BJ1616-68 BJ1620-83 BJ1625-90 BJ1630-90 BJ1640-90 |
|||||||
