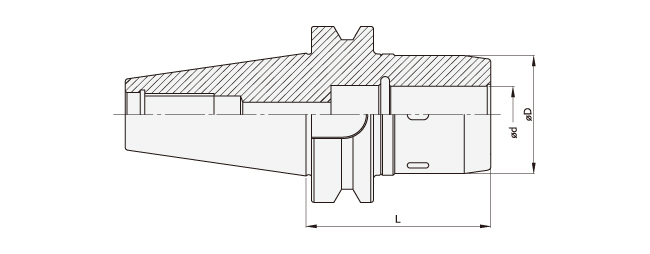

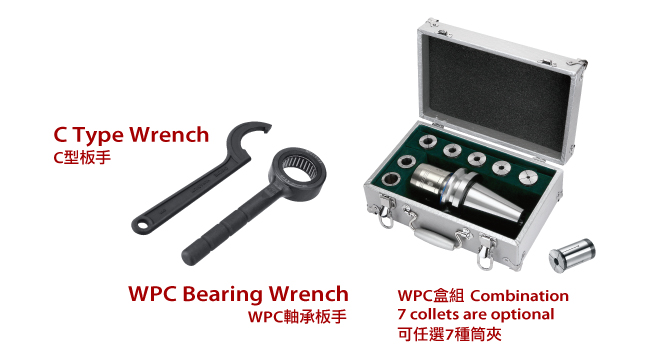

TYPE | L | Ød | ØD | Collet | Weight | Dynamic Balance | Wrench |
型號 | 適用筒夾 | 重量 | 動態平衡 | 板手 | |||
BT30-WPC06-080 | 80 | 6 | 35 | - | 25,000rpm G2.5 | WPC06-35 | |
WPC06-120 | 120 | 6 | 35 | - |
|
WPC06-35 | |
WPC06-150 | 80 | 8 | 35 | - | 25,000rpm G2.5 | WPC06-35 | |
WPC08-080 | 120 | 8 | 35 | - | WPC06-35 | ||
WPC08-120 | 80 | 10 | 40 | - | 25,000rpm G2.5 | WPC10-40 | |
WPC10-080 | 90 | 10 | 40 | - | WPC10-40 | ||
WPC10-120 | 90 | 12 | 43 | - | 1.2 | 25,000rpm G2.5 | HW251(45~50) |
WPC12-080 | 100 | 16 | 53 | - | 1.3 | 25,000rpm G2.5 | HW253(52~55) |
WPC16-090 | 150 | 20 | 57 | 6.8.10.12.14.16 | 1.6 | 25,000rpm G2.5 | HW253(58~62) |
WPC20-090 | 100 | 6 | 35 | - | 25,000rpm G2.5 | WPC06-35 | |
BT40-WPC06-100 | 150 | 6 | 35 | - | WPC06-35 | ||
WPC08-100 | 100 | 8 | 35 | - | 25,000rpm G2.5 | WPC06-35 | |
WPC08-150 | 150 | 8 | 35 | - | WPC06-35 | ||
WPC10-100 | 100 | 10 | 40 | - | 25,000rpm G2.5 | WPC10-40 | |
WPC10-150 | 150 | 10 | 40 | - | WPC10-40 | ||
WPC12-085 | 85 | 12 | 43 | - | 1.7 | 25,000rpm G2.5 | HW251(45~50) |
WPC16-090 | 90 | 16 | 53 | - | 2.0 | 25,000rpm G2.5 | HW252(52~55) |
WPC20-090 | 90 | 20 | 57 | - | 2.2 | 25,000rpm G2.5 | HW253(58~62) |
WPC25-095 | 95 | 25 | 63 | 6.8.10.12.14.16.18.20 | 2.3 | 25,000rpm G2.5 | HW253(58~62) |
BT50-WPC06-100 | 100 | 6 | 35 | - | 20,000rpm G2.5 | WPC06-35 | |
WPC06-150 | 150 | 6 | 35 | - | WPC06-35 | ||
WPC06-200 | 200 | 6 | 35 | - | WPC06-35 | ||
WPC06-250 | 250 | 6 | 35 | - | WPC06-35 | ||
WPC08-100 | 100 | 8 | 35 | - | 20,000rpm G2.5 | WPC06-35 | |
WPC08-150 | 150 | 8 | 35 | - | WPC06-35 | ||
WPC08-200 | 200 | 8 | 35 | - | WPC06-35 | ||
WPC08-250 | 250 | 8 | 35 | - | WPC06-35 | ||
WPC10-100 | 100 | 10 | 40 | - | 20,000rpm G2.5 | WPC10-40 | |
WPC10-150 | 150 | 10 | 40 | - | WPC10-40 | ||
WPC10-200 | 200 | 10 | 40 | - | WPC10-40 | ||
WPC10-250 | 250 | 10 | 40 | - | WPC10-40 | ||
WPC12-100 | 100 | 12 | 43 | - | 4.5 | 20,000rpm G2.5 | HW251(45~50) |
WPC12-150 | 150 | 12 | 43 | - | HW251(45~50) | ||
WPC12-200 | 200 | 12 | 43 | - | HW251(45~50) | ||
WPC12-250 | 250 | 12 | 43 | - | HW251(45~50) | ||
WPC16-100 | 100 | 16 | 53 | - | 4.9 | 20,000rpm G2.5 | HW252(52~55) |
WPC16-150 | 150 | 16 | 53 | - | HW252(52~55) | ||
WPC16-200 | 200 | 16 | 53 | - | HW252(52~55) | ||
WPC16-250 | 250 | 16 | 53 | - | HW252(52~55) | ||
WPC20-100 | 100 | 20 | 57 | 6.8.10.12.14.16 | 5.0 | 20,000rpm G2.5 | HW253(58~62) |
WPC20-150 | 150 | 20 | 57 | 6.8.10.12.14.16 | HW253(58~62) | ||
WPC20-200 | 200 | 20 | 57 | 6.8.10.12.14.16 | HW253(58~62) | ||
WPC20-250 | 250 | 20 | 57 | 6.8.10.12.14.16 | HW253(58~62) | ||
WPC25-105 | 105 | 25 | 63 | 6.8.10.12.14.16.18.20 | 5.1 | 20,000rpm G2.5 | HW253(58~62) |
WPC25-150 | 150 | 25 | 63 | 6.8.10.12.14.16.18.20 | 6.6 | HW253(58~62) | |
WPC25-200 | 200 | 25 | 63 | 6.8.10.12.14.16.18.20 | HW253(58~62) | ||
WPC25-250 | 250 | 25 | 63 | 6.8.10.12.14.16.18.20 | HW253(58~62) | ||
WPC32-105 | 105 | 32 | 67 | 6.8.10.12.14.16.18.20.25 | 5.1 | - | HW254(68~75) |
WPC32-165 | 165 | 32 | 67 | 6.8.10.12.14.16.18.20.25 | 6.8 | - | HW254(68~75) |
WPC32-210 | 210 | 32 | 67 | 6.8.10.12.14.16.18.20.25 | - | HW254(68~75) | |
WPC32-260 | 260 | 32 | 67 | 6.8.10.12.14.16.18.20.25 | - | HW254(68~75) |
