PSK高速精密筒夾刀桿
應用於：
▼一般銑削/鑽孔加工
▼高精度銑削/鉸孔加工
偏擺精度：≦0.005mm.
動平衡等級：≦G2.5/30.000RPM(BT30) / ≦G2.5/25.000RPM(BT40)

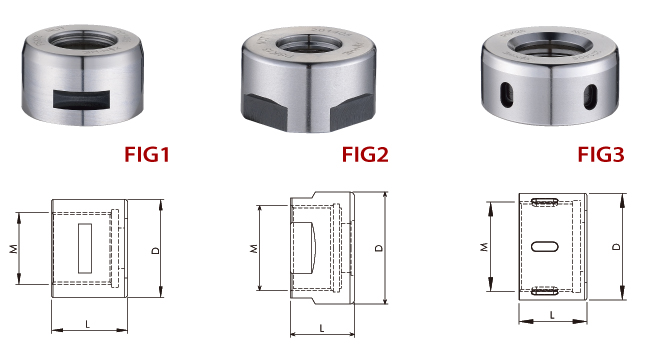

PSK 螺帽
PSK 螺帽
| ORDER NO. | ØD | L | M | FIG |
| 訂購編號 | ||||
| PSK10 | 30 | 18.0 | M22*1.25P | 1 |
| PSK13 | 37 | 21.0 | M28*1.5P | 2 |
| PSK16 | 42 | 24.8 | M32*1.5P | 1 |
| PSK20 | 51 | 25.0 | M40*1.5P | 3 |
| PSK25 | 56 | 26.0 | M45*1.5P |

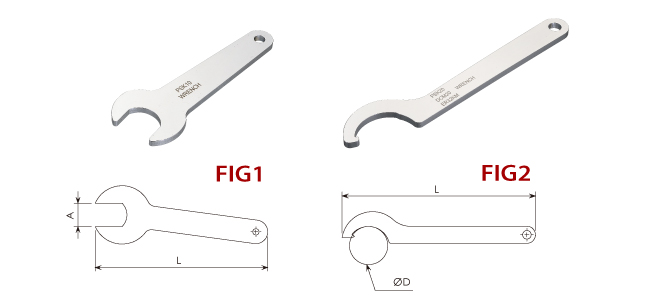

PSK 板手
| ORDER NO. | A | L | FIG |
| 訂購編號 | |||
| PSK10 | 26.3 | 147 | 1 |
| PSK13 | 33.3 | 177 | |
| PSK16 | 38.3 | 177 | |
| PSK20 | ØD50-53 | 230 | 2 |
| PSK25 | ØD60-63 | 260 |

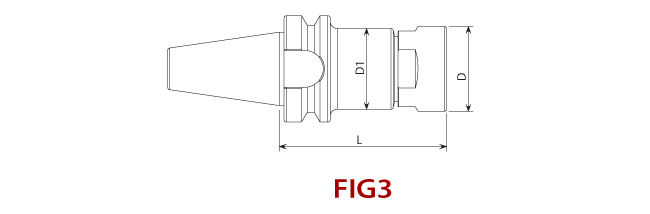

| ORDER NO. | FIG | RANGE | ØD | ØD1 | L | NUT | WRENCH |
| 訂購編號 | 夾持範圍 | 螺帽 | 板手 | ||||
| BT30-PSK10-045 | 1 | Ø 2 - 10 | 30 | 30 | 45 | PSK10 | PSK10 |
| BT30-PSK10-060 | 60 | ||||||
| BT30-PSK10-090 | 90 | ||||||
| BT30-PSK10-130 | 130 | ||||||
| BT30-PSK13-060 | 3 | Ø 3 - 13 | 37 | 35 | 60 | PSK13 | PSK13 |
| BT30-PSK13-075 | 75 | ||||||
| BT30-PSK13-090 | 90 | ||||||
| BT30-PSK13-130 | 130 | ||||||
| BT30-PSK16-060 | 1 | Ø 3 - 16 | 42 | 40 | 60 | PSK16 | PSK16 |
| BT30-PSK16-090 | 90 | ||||||
| BT30-PSK16-130 | 130 | ||||||
| BT30-PSK20-060 | 1 | Ø 3 - 20 | 51 | 50 | 60 | PSK20 | PSK20 |
| BT30-PSK20-090 | 90 | ||||||
| BT30-PSK25-090 | 1 | Ø 4 - 25 | 56 | 55 | 90 | PSK25 | PSK25 |
| BT40-PSK10-060 | 1 | Ø 2 - 10 | 30 | 30 | 60 | PSK10 | PSK10 |
| BT40-PSK10-090 | 90 | ||||||
| BT40-PSK10-120 | 120 | ||||||
| BT40-PSK10-150 | 2 | 34 | 150 | ||||
| BT40-PSK10-165 | 165 | ||||||
| BT40-PSK10-200 | 36 | 200 | |||||
| BT40-PSK13-060 | 3 | Ø 3 - 13 | 37 | 35 | 60 | PSK13 | PSK13 |
| BT40-PSK13-090 | 90 | ||||||
| BT40-PSK13-120 | 120 | ||||||
| BT40-PSK13-150 | 2 | 40 | 150 | ||||
| BT40-PSK13-165 | 165 | ||||||
| BT40-PSK13-200 | 42 | 200 | |||||
| BT40-PSK16-060 | 1 | Ø 3 - 16 | 42 | 40 | 60 | PSK16 | PSK16 |
| BT40-PSK16-090 | 90 | ||||||
| BT40-PSK16-120 | 120 | ||||||
| BT40-PSK16-150 | 2 | 46 | 150 | ||||
| BT40-PSK16-165 | 48 | 165 | |||||
| BT40-PSK16-200 | 50 | 200 | |||||
| BT40-PSK20-060 | 1 | Ø 3 - 20 | 51 | 50 | 60 | PSK20 | PSK20 |
| BT40-PSK20-090 | 90 | ||||||
| BT40-PSK20-120 | 120 | ||||||
| BT40-PSK20-150 | 2 | 55 | 150 | ||||
| BT40-PSK20-200 | 200 | ||||||
| BT40-PSK25-080 | 1 | Ø 4 - 25 | 56 | 55 | 80 | PSK25 | PSK25 |
| BT40-PSK25-120 | 120 | ||||||
| BT40-PSK25-150 | 150 | ||||||
| BT40-PSK25-200 | 200 |
| ORDER NO. | FIG | RANGE | ØD | ØD1 | L | NUT | WRENCH |
| 訂購編號 | 夾持範圍 | 螺帽 | 板手 | ||||
| BT50-PSK10-105 | 1 | Ø 2 - 10 | 30 | 30 | 105 | PSK10 | PSK10 |
| BT50-PSK10-135 | 135 | ||||||
| BT50-PSK10-150 | 2 | 34 | 150 | ||||
| BT50-PSK10-165 | 165 | ||||||
| BT50-PSK10-200 | 36 | 200 | |||||
| BT50-PSK13-105 | 3 | Ø 3 - 13 | 37 | 35 | 105 | PSK13 | PSK13 |
| BT50-PSK13-135 | 135 | ||||||
| BT50-PSK13-150 | 2 | 40 | 150 | ||||
| BT50-PSK13-165 | 165 | ||||||
| BT50-PSK13-200 | 42 | 200 | |||||
| BT50-PSK16-065 | 1 | Ø 3 - 16 | 42 | 40 | 65 | PSK16 | PSK16 |
| BT50-PSK16-105 | 105 | ||||||
| BT50-PSK16-135 | 135 | ||||||
| BT50-PSK16-150 | 150 | ||||||
| BT50-PSK16-165 | 2 | 46 | 165 | ||||
| BT50-PSK16-200 | 200 | ||||||
| BT50-PSK16-250 | 48 | 250 | |||||
| BT50-PSK16-300 | 52 | 300 | |||||
| BT50-PSK20-105 | 1 | Ø 3 - 20 | 51 | 50 | 105 | PSK20 | PSK20 |
| BT50-PSK20-135 | 135 | ||||||
| BT50-PSK20-150 | 150 | ||||||
| BT50-PSK20-165 | 2 | 55 | 165 | ||||
| BT50-PSK20-200 | 200 | ||||||
| BT50-PSK20-250 | 58 | 250 | |||||
| BT50-PSK20-300 | 60 | 300 | |||||
| BT50-PSK25-105 | 1 | Ø 4 - 25 | 56 | 55 | 105 | PSK25 | PSK25 |
| BT50-PSK25-135 | 135 | ||||||
| BT50-PSK25-150 | 150 | ||||||
| BT50-PSK25-165 | 2 | 60 | 165 | ||||
| BT50-PSK25-200 | 200 | ||||||
| BT50-PSK25-250 | 62 | 250 | |||||
| BT50-PSK25-300 | 64 | 300 |
