Index > Products > Modular Boring System > HBI Small-dia. Finish Boring Head

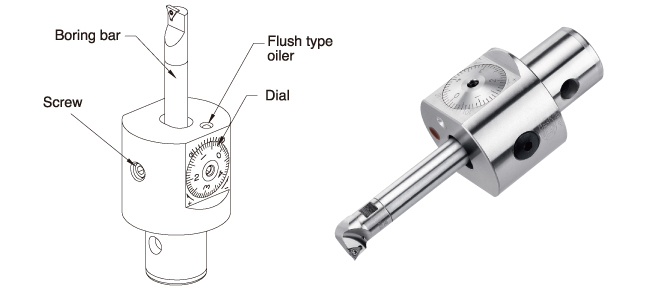

HBI Small-dia. Finish Boring Head

Feature
1. Interior precision thread with rustproof to be more durable and no corrosion.
2. Thw spool is treated by Chemical Ni plated for smooth movement and no corrosion.
3. Clear measuring dial and each unit is as 0.005mm (Dia. 0.01mm).
4. High quality alloy steel body and parts with vacuum-heat treatment for rigid construction.

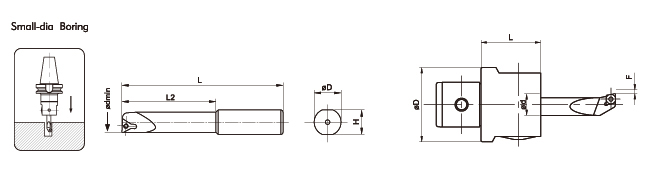

TYPE

Shank

F

Ød

ØD

L

Weight

HBI 4

AD4

0~2.0

10

39

32

0.45KG

HBI 5

AD5

0~3.5

12

50

40

0.80KG

HBI 6

AD6

0~5.0

16

64

48

1.50KG


HBI-4

TYPE

ØD

Ød (Range)

L

L2

H

Insert

Screw

Wrench

BJ1008-32

10

8~10

64

32

9

TB..0601..

MS2005A

T6

BJ1010-40

10~12

72

40

BJ1012-45

12~16

77

27

TP..0902..

MS2506A

T9

BJ1016-45

16~20

BJ1020-45

20~25

*BJ10-5PCS

BJ1008-32  BJ1010-40  BJ1012-45  BJ1016-45  BJ1020-45


HBI-5

TYPE

ØD

Ød (Range)

L

L2

H

Insert

Screw

Wrench

BJ1208-32

12

8~10

64

32

11

TB..0601..

MS2005A

T6

BJ1210-40

10~12

72

40

BJ1212-45

12~16

77

45

TP..0902..

MS2506A

T9

BJ1216-45

16~20

22

BJ1220-45

20~25

25

TP..1103..

MS3008A

*BJ12-5PCS

BJ1208-32  BJ1210-40  BJ1212-45  BJ1216-45  BJ1220-45


HBI-6

TYPE

ØD

Ød (Range)

L

L2

H

Insert

Screw

Wrench

BJ1608-32

16

8~10

74

32

15

TB..0601..

MS2005A

T6

BJ1610-40

10~12

75

40

BJ1612-53

12~16

85

53

TP..0902..

MS2506A

T9

BJ1616-68

16~20

100

68

BJ1620-83

20~25

115

35

TP..1103..

MS3008A

BJ1625-90

25~30

122

40

BJ1630-90

30~40

122

40

BJ1640-90

40~50

122

40

*BJ16-8PCS

BJ1608-32  BJ1610-40  BJ1612-53  BJ1616-68  BJ1620-83  BJ1625-90  BJ1630-90  BJ1640-90
　　　
