WPC Hi-power Milling Chuck

特性
1. The high quality alloy steel is with carburizedtreatment and then -120°~-150℃ sub-zero treatment to make sure of being indeformable in the machining.
2. The clamping is designed with needle bearing to distribute the clamping force  evenly to make sure stable and fixed clamping.
3. WPC Hi-power milling chuck with special elastic force chucking is  suitable for high speed an heavy cutting simultaneously.

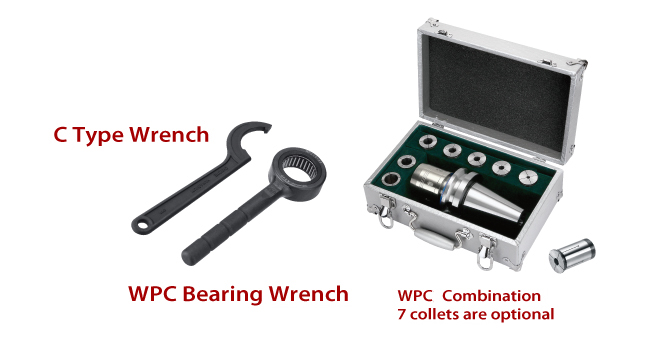

4. Wrench is ordered separately if required.


TYPE L Ød ØD Collet Weight Dynamic Balance Wrench
BT30-WPC06-080 80 6 35 -   25,000rpm G2.5 WPC06-35
WPC06-120 120 6 35 -

 WPC06-35
WPC06-150 80 8 35 -   25,000rpm G2.5 WPC06-35
WPC08-080 120 8 35 -     WPC06-35
WPC08-120 80 10 40 -   25,000rpm G2.5 WPC10-40
WPC10-080 90 10 40 -     WPC10-40
WPC10-120 90 12 43 - 1.2 25,000rpm G2.5 HW251(45~50)
WPC12-080 100 16 53 - 1.3 25,000rpm G2.5 HW253(52~55)
WPC16-090 150 20 57 6.8.10.12.14.16 1.6 25,000rpm G2.5 HW253(58~62)
WPC20-090 100 6 35 -   25,000rpm G2.5 WPC06-35
BT40-WPC06-100 150 6 35 -     WPC06-35
WPC08-100 100 8 35 -   25,000rpm G2.5 WPC06-35
WPC08-150 150 8 35 -     WPC06-35
WPC10-100 100 10 40 -   25,000rpm G2.5 WPC10-40
WPC10-150 150 10 40 -     WPC10-40
WPC12-085 85 12 43 - 1.7 25,000rpm G2.5 HW251(45~50)
WPC16-090 90 16 53 - 2.0 25,000rpm G2.5 HW252(52~55)
WPC20-090 90 20 57 - 2.2 25,000rpm G2.5 HW253(58~62)
WPC25-095 95 25 63 6.8.10.12.14.16.18.20 2.3 25,000rpm G2.5 HW253(58~62)
BT50-WPC06-100 100 6 35 -   20,000rpm G2.5 WPC06-35
WPC06-150 150 6 35 -     WPC06-35
WPC06-200 200 6 35 -     WPC06-35
WPC06-250 250 6 35 -     WPC06-35
WPC08-100 100 8 35 -   20,000rpm G2.5 WPC06-35
WPC08-150 150 8 35 -     WPC06-35
WPC08-200 200 8 35 -     WPC06-35
WPC08-250 250 8 35 -     WPC06-35
WPC10-100 100 10 40 -   20,000rpm G2.5 WPC10-40
WPC10-150 150 10 40 -     WPC10-40
WPC10-200 200 10 40 -     WPC10-40
WPC10-250 250 10 40 -     WPC10-40
WPC12-100 100 12 43 - 4.5 20,000rpm G2.5 HW251(45~50)
WPC12-150 150 12 43 -     HW251(45~50)
WPC12-200 200 12 43 -     HW251(45~50)
WPC12-250 250 12 43 -     HW251(45~50)
WPC16-100 100 16 53 - 4.9 20,000rpm G2.5 HW252(52~55)
WPC16-150 150 16 53 -     HW252(52~55)
WPC16-200 200 16 53 -     HW252(52~55)
WPC16-250 250 16 53 -     HW252(52~55)
WPC20-100 100 20 57 6.8.10.12.14.16 5.0 20,000rpm G2.5 HW253(58~62)
WPC20-150 150 20 57 6.8.10.12.14.16     HW253(58~62)
WPC20-200 200 20 57 6.8.10.12.14.16     HW253(58~62)
WPC20-250 250 20 57 6.8.10.12.14.16     HW253(58~62)
WPC25-105 105 25 63 6.8.10.12.14.16.18.20 5.1 20,000rpm G2.5 HW253(58~62)
WPC25-150 150 25 63 6.8.10.12.14.16.18.20 6.6   HW253(58~62)
WPC25-200 200 25 63 6.8.10.12.14.16.18.20     HW253(58~62)
WPC25-250 250 25 63 6.8.10.12.14.16.18.20     HW253(58~62)
WPC32-105 105 32 67 6.8.10.12.14.16.18.20.25 5.1 - HW254(68~75)
WPC32-165 165 32 67 6.8.10.12.14.16.18.20.25 6.8 - HW254(68~75)
WPC32-210 210 32 67 6.8.10.12.14.16.18.20.25   - HW254(68~75)
WPC32-260 260 32 67 6.8.10.12.14.16.18.20.25   - HW254(68~75)
　　　
