SDC-K High Speed Precision Collet Chucks

Application:
▼High speed milling and finishing.
▼General milling. Run-out Precision:≦0.005mm.
Balanced Grade:
≦G2.5/30.000RPM(BT30)
≦G2.5/25.000RPM(BT40)
≦G2.5/20.000RPM(BT50)
SDC Collet
ORDER NO. D L Ød
SDC6 9.5 36 2   2.5   3   3.175   3.5   4   4.5   5   5.5   6
SDC8 15 45 3   3.175   4   5   6   7   8   9   10
SDC12 22 60 3   3.175   4   5   6   7   8   9   10   12

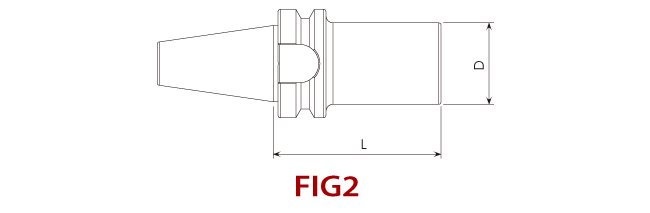

ORDER NO. FIG RANGE ØD ØD1 Ød1 L θ WRENCH
BT30-SDC06-060K 1 Ø 2 - 6 14 17 27.5 60 2.86゜ M4
BT30-SDC06-090K 20 30.5 90
BT30-SDC12-080K 2 Ø 3 - 12 34 - 34 80 M8
BT40-SDC06-060K 1 Ø 2 - 6 14 16.3 23 60 M4
BT40-SDC06-090K 19.5 30 90
BT40-SDC06-120K 24 34.5 120
BT40-SDC06-150K 27.5 38 150
BT40-SDC08-060K 1 Ø 3 - 10 22 24.3 23 60 M5
BT40-SDC08-090K 27.5 38 90
BT40-SDC08-120K 32 42.5 120
BT40-SDC08-150K 35.5 46 150
BT40-SDC12-070K 2 Ø 3 - 12 34 - 34 70 M8
BT40-SDC12-090K - 37 90
BT40-SDC12-120K - 39 120
BT40-SDC12-150K - 150
BT50-SDC06-110K 1 Ø 2 - 6 14 21.5 32 110 M4
BT50-SDC06-155K 27 37.5 155
BT50-SDC06-200K 30 40 200
BT50-SDC08-110K 1 Ø 3 - 10 22 29.5 40 110 M5
BT50-SDC08-155K 35 45.5 155
BT50-SDC08-200K 38 48 200
BT50-SDC12-110K 2 Ø 3 - 12 34 - 37 110 M8
BT50-SDC12-155K - 39 155
BT50-SDC12-200K 1 - 41 200
