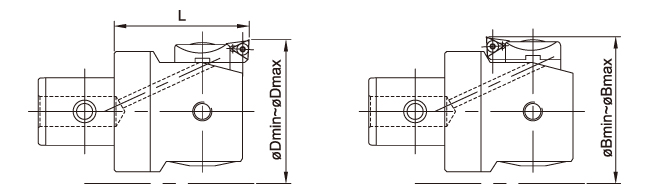

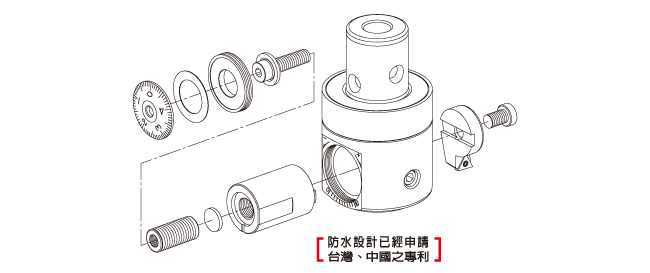

TYPE |
ØD Range |
ØB Range |
L |
Shank |
Insert |
Insert Holder |
Weight |
|
型號 |
搪孔範圍 |
反搪範圍 |
刀桿型號 |
刀片規格 |
刀片座 |
搪頭重量 |
|
|

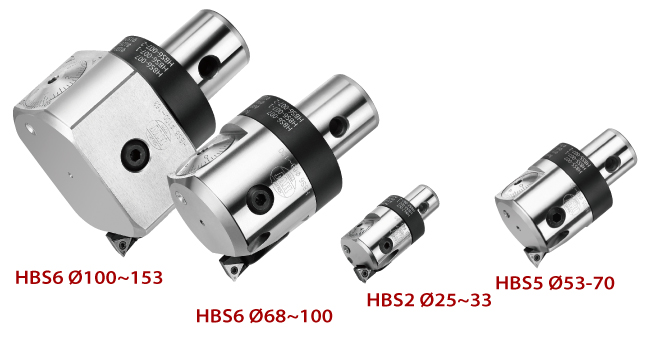

HBS-1 |
Ø20~Ø26 |
|
32.5 |
AD1 |
TPGT0802.. |
HBS1-007 |
0.08KG |
|
HBS-2 |
Ø25~Ø33 |
|
35.5 |
AD2 |
TPGT0802.. |
HBS2-007 |
0.13KG |
|
HBS-3 |
Ø32~Ø42 |
|
40 |
AD3 |
TPGT0802.. |
HBS3-007 |
0.23KG |
|
HBS-4 |
Ø41~Ø54 |
|
47 |
AD4 |
TCGT1102.. |
HBS4-007 |
0.45KG |
|
HBS-5 |
Ø53~Ø70 |
Ø62~Ø70 |
57 |
AD5 |
TCGT1102.. |
HBS5-007 |
1.20KG |
|
HBS-6-1 |
Ø68~Ø100 |
Ø80~Ø100 |
71 |
AD6 |
TCGT1102.. |
HBS6-007 |
1.80KG |
|
HBS-6-2 |
Ø100~Ø153 |
Ø112~Ø153 |
71 |
AD6 |
TCGT1102.. |
HBS6-007 |
2.50KG |
|
INSERT |
SCREW |
WRENCH |
INSERT |
SCREW |
WRENCH |
|
CC..0602.. |
S2502-4 |
T8 |
TP..0802.. |
S2001-2 |
T6 |
|
CC..09T3.. |
S4001-3 |
T15 |
TC..1102.. |
S2502-4 |
T8 |

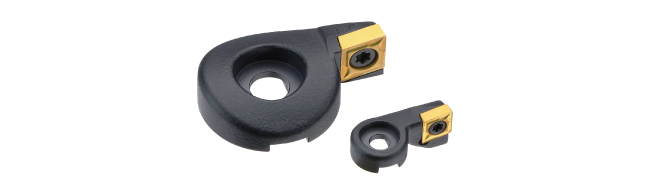

HBS 菱形刀片座（選購品，不含菱形刀片）
|
TYPE |
Insert |
|
型號 |
刀片規格 |
|
HBS3-007C |
CC..0602.. |
|
HBS4-007C |
CC..0602.. |
|
HBS5-007C |
CC..0602.. |
|
HBS6-007C |
CC..09T3.. |

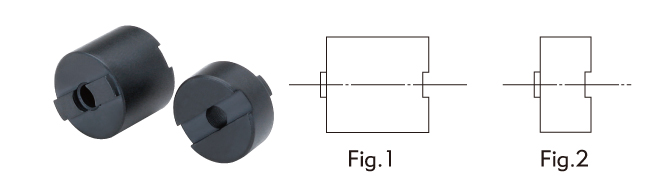

HBS 延伸環（選購品）
|
TYPE |
Insert |
ØD Range |
ØB Range |
Fig. |
|
型號 |
刀片規格 |
搪孔範圍 |
反搪範圍 |
|
|
HBS1-007-1 |
HBS-1 |
Ø 25~Ø 31 |
Ø 30~Ø 31 |
2 |
|
HBS1-007-2 |
Ø 30~Ø 36 |
Ø 30~Ø 36 |
1 |
|
|
HBS2-007-1 |
HBS-2 |
Ø 32~Ø 40 |
Ø 36~Ø 40 |
2 |
|
HBS2-007-2 |
Ø 39~Ø 47 |
Ø 39~Ø 47 |
1 |
|
|
HBS3-007-1 |
HBS-3 |
Ø 41~Ø 51 |
Ø 46~Ø 51 |
2 |
|
HBS3-007-2 |
Ø 50~Ø 60 |
Ø 51~Ø 60 |
1 |
|
|
HBS4-007-1 |
HBS-4 |
Ø 50~Ø 63 |
Ø 53~Ø 63 |
2 |
|
HBS4-007-2 |
Ø 61~Ø 74 |
Ø 61~Ø 74 |
1 |
|
|
HBS5-007-1 |
HBS-5 |
Ø 65~Ø 82 |
Ø 65~Ø 82 |
2 |
|
HBS5-007-2 |
Ø 78~Ø 95 |
Ø 78~Ø 95 |
1 |
|
|
HBS6-007-1 |
HBS-6-1 |
Ø 94~Ø 126 |
Ø 94~Ø 126 |
2 |
|
HBS6-007-2 |
Ø 118~Ø 150 |
Ø 118~Ø 150 |
1 |
|
|
HBS6-007-1 |
HBS-6-2 |
Ø 126~Ø 179 |
Ø 126~Ø 179 |
2 |
|
HBS6-007-2 |
Ø 150~Ø 203 |
Ø 150~Ø 203 |
1 |
