首頁 > 產品介紹 > 其它配件 > 平行板

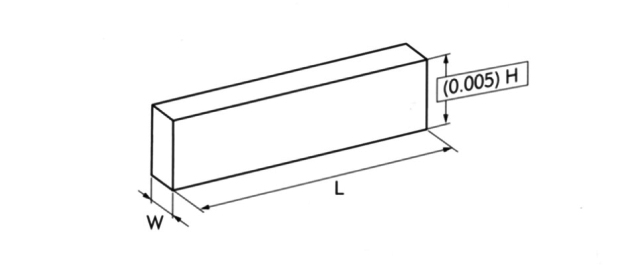

平行板
Material:S45C
Haromess treatmant up to HRC 55°~58°
mm
|
型號Model |
WxHxLxPCS |
WxHxLxPCS |
|
JC-31-001 N.W.:3kg |
3x13x150x2 |
3x28x150x2 |
|
3x16x150x2 |
3x31x150x2 |
|
|
3x19x150x2 |
3x35x150x2 |
|
|
3x22x150x2 |
3x38x150x2 |
|
|
3x25x150x2 |
3x41x150x2 |
mm
|
型號Model |
WxHxLxPCS |
WxHxLxPCS |
|
JC-31-012 N.W.:1.9kg |
4x10x100x2 |
4x30x100x2 |
|
4x14x100x2 |
4x34x100x2 |
|
|
4x18x100x2 |
4x38x100x2 |
|
|
4x22x100x2 |
4x42x100x2 |
|
|
4x26x100x2 |
|
mm
|
型號Model |
WxHxLxPCS |
WxHxLxPCS |
|
JC-31-022 N.W.:3.8kg |
8x12x120x2 |
8x28x120x2 |
|
8x17x120x2 |
8x32x120x2 |
|
|
8x22x120x2 |
8x36x120x2 |
|
|
8x25x120x2 |
8x38x120x2 |
|
|
|
|
mm
|
型號Model |
WxHxLxPCS |
WxHxLxPCS |
|
JC-31-031 N.W.:6.6kg |
8x17x200x2 |
8x32x200x2 |
|
8x22x200x2 |
8x36x200x2 |
|
|
8x25x200x2 |
8x38x200x2 |
|
|
8x28x200x2 |
8x43x200x2 |
|
|
|
|
