ER彈性筒夾刀桿

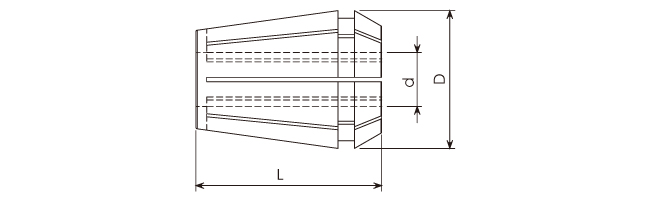

| ORDER NO. | D | L | RANGE Ø d(mm) |
| 訂購編號 | 內徑範圍(mm) | ||
| ER11 | 11.5 | 18 | 1 ~ 7.0 |
| ER16 | 17 | 27.5 | 1 ~ 10 |
| ER20 | 21 | 31.5 | 1 ~ 13 |
| ER25 | 26 | 34 | 2 ~ 16 |
| ER32 | 33 | 40 | 3 ~ 20 |
| ER40 | 41 | 46 | 3 ~ 26 |
| ER50 | 52 | 60 | 12 ~ 34 |
unit:mm
| ER11 | ER16 | ER20 | ER25 | ||||
| ORDER NO. | RANGE | ORDER NO. | RANGE | ORDER NO. | RANGE | ORDER NO. | RANGE |
| 訂購編號 | 夾持範圍 | 訂購編號 | 夾持範圍 | 訂購編號 | 夾持範圍 | 訂購編號 | 夾持範圍 |
| ER11-1.0 | 1.0~0.5 | ER16-1.0 | 1.0~0.5 | ER20-1.0 | 1.0~0.5 | ER25-2.0 | 2.0~1.0 |
| ER11-1.5 | 1.5~1.0 | ER16-1.5 | 1.5~1.0 | ER20-1.5 | 1.5~1.0 | ER25-3.0 | 3.0~2.0 |
| ER11-2.0 | 2.0~1.5 | ER16-2.0 | 2.0~1.5 | ER20-2.0 | 2.0~1.5 | ER25-4.0 | 4.0~3.0 |
| ER11-2.5 | 2.5~2.0 | ER16-2.5 | 2.5~2.0 | ER20-2.5 | 2.5~2.0 | ER25-5.0 | 5.0~4.0 |
| ER11-3.0 | 3.0~2.5 | ER16-3.0 | 3.0~2.5 | ER20-3.0 | 3.0~2.5 | ER25-6.0 | 6.0~5.0 |
| ER11-3.5 | 3.5~3.0 | ER16-3.5 | 3.5~3.0 | ER20-3.5 | 3.5~3.0 | ER25-7.0 | 7.0~6.0 |
| ER11-4.0 | 4.0~3.5 | ER16-4.0 | 4.0~3.5 | ER20-4.0 | 4.0~3.5 | ER25-8.0 | 8.0~7.0 |
| ER11-4.5 | 4.5~4.0 | ER16-4.5 | 4.5~4.0 | ER20-4.5 | 4.5~4.0 | ER25-9.0 | 9.0~8.0 |
| ER11-5.0 | 5.0~4.5 | ER16-5.0 | 5.0~4.5 | ER20-5.0 | 5.0~4.5 | ER25-10.0 | 10.0~9.0 |
| ER11-5.5 | 5.5~5.0 | ER16-5.5 | 5.5~5.0 | ER20-5.5 | 5.5~5.0 | ER25-11.0 | 11.0~10.0 |
| ER11-6.0 | 6.0~5.5 | ER16-6.0 | 6.0~5.5 | ER20-6.0 | 6.0~5.5 | ER25-12.0 | 12.0~11.0 |
| ER11-6.5 | 6.5~6.0 | ER16-6.5 | 6.5~6.0 | ER20-6.5 | 6.5~6.0 | ER25-13.0 | 13.0~12.0 |
| ER11-7.0 | 7.0~6.5 | ER16-7.0 | 7.0~6.5 | ER20-7.0 | 7.0~6.5 | ER25-14.0 | 14.0~13.0 |
| ER16-7.5 | 7.5~7.0 | ER20-7.5 | 7.5~7.0 | ER25-15.0 | 15.0~14.0 | ||
| ER16-8.0 | 8.0~7.5 | ER20-8.0 | 8.0~7.5 | ER25-16.0 | 16.0~15.0 | ||
| ER16-8.5 | 8.5~8.0 | ER20-8.5 | 8.5~8.0 | ||||
| ER16-9.0 | 9.0~8.5 | ER20-9.0 | 9.0~8.5 | ||||
| ER16-9.5 | 9.5~9.0 | ER20-9.5 | 9.5~9.0 | ||||
| ER16-10 | 10.0~9.5 | ER20-10 | 10.0~9.5 | ||||
| ER20-10.5 | 10.5~10.0 | ||||||
| ER20-11.0 | 11.0~10.5 | ||||||
| ER20-11.5 | 11.5~11.0 | ||||||
| ER20-12.0 | 12.0~11.5 | ||||||
| ER20-12.5 | 12.5~12.0 | ||||||
| ER20-13.0 | 13.0~12.5 | ||||||
| ER32 | ER40 | ER50 | |||
| ORDER NO. | RANGE | ORDER NO. | RANGE | ORDER NO. | RANGE |
| 訂購編號 | 夾持範圍 | 訂購編號 | 夾持範圍 | 訂購編號 | 夾持範圍 |
| ER32-3.0 | 3.0~2.0 | ER40-3.0 | 3.0~2.0 | ER50-12.0 | 12.0~10.0 |
| ER32-4.0 | 4.0~3.0 | ER40-4.0 | 4.0~3.0 | ER50-14.0 | 14.0~12.0 |
| ER32-5.0 | 5.0~4.0 | ER40-5.0 | 5.0~4.0 | ER50-16.0 | 16.0~14.0 |
| ER32-6.0 | 6.0~5.0 | ER40-6.0 | 6.0~5.0 | ER50-18.0 | 18.0~16.0 |
| ER32-7.0 | 7.0~6.0 | ER40-7.0 | 7.0~6.0 | ER50-20.0 | 20.0~18.0 |
| ER32-8.0 | 8.0~7.0 | ER40-8.0 | 8.0~7.0 | ER50-22.0 | 22.0~20.0 |
| ER32-9.0 | 9.0~8.0 | ER40-9.0 | 9.0~8.0 | ER50-24.0 | 24.0~22.0 |
| ER32-10.0 | 10.0~9.0 | ER40-10.0 | 10.0~9.0 | ER50-26.0 | 26.0~24.0 |
| ER32-11.0 | 11.0~10.0 | ER40-11.0 | 11.0~10.0 | ER50-28.0 | 28.0~26.0 |
| ER32-12.0 | 12.0~11.0 | ER40-12.0 | 12.0~11.0 | ER50-30.0 | 30.0~28.0 |
| ER32-13.0 | 13.0~12.0 | ER40-13.0 | 13.0~12.0 | ER50-32.0 | 32.0~30.0 |
| ER32-14.0 | 14.0~13.0 | ER40-14.0 | 14.0~13.0 | ER50-34.0 | 34.0~32.0 |
| ER32-15.0 | 15.0~14.0 | ER40-15.0 | 15.0~14.0 | ||
| ER32-16.0 | 16.0~15.0 | ER40-16.0 | 16.0~15.0 | ||
| ER32-17.0 | 17.0~16.0 | ER40-17.0 | 17.0~16.0 | ||
| ER32-18.0 | 18.0~17.0 | ER40-18.0 | 18.0~17.0 | ||
| ER32-19.0 | 19.0~18.0 | ER40-19.0 | 19.0~18.0 | ||
| ER32-20.0 | 20.0~19.0 | ER40-20.0 | 20.0~19.0 | ||
| ER40-21.0 | 21.0~20.0 | ||||
| ER40-22.0 | 22.0~21.0 | ||||
| ER40-23.0 | 23.0~22.0 | ||||
| ER40-24.0 | 24.0~23.0 | ||||
| ER40-25.0 | 25.0~24.0 | ||||
| ER40-26.0 | 26.0~25.0 | ||||
