DH-1200R Tool Pre-setter
Main axle’s taper is #40
STANDARD ACCESSORIES
1. Test bar #50x1pcs, Ø40m/m，length: 200m/m

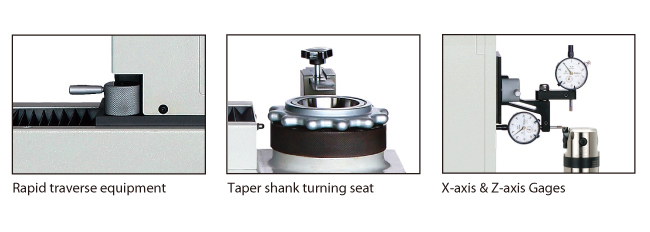

2. Dial gage x2 pcs
3. Allen wrench x1 set
4. D.R.O. for X-axis and Y-axis
OPTIONS
1. Cabinet/Station (As the attachment)
2. ＃40～＃30 Adapter
3. ＃50～＃40 Adapter
4. ＃50～＃30 Adapter
5. ＃50～HSK63 Adapter
6. ＃50～HSK50 Adapter
|
Model |
DH-1200R |
|
Measuring Range |
Diameter (X):Ø100mm Height (Z):30~200mm |
|
Resolution |
X-Axis: 0.005mm Z-Axis: 0.005mm |
|
Machine Size |
500x320x640mm(LxWxH) |
|
Weight |
45kg |
|
Packing Size |
800x420x910mm |
|
Total Weight |
85kg |
