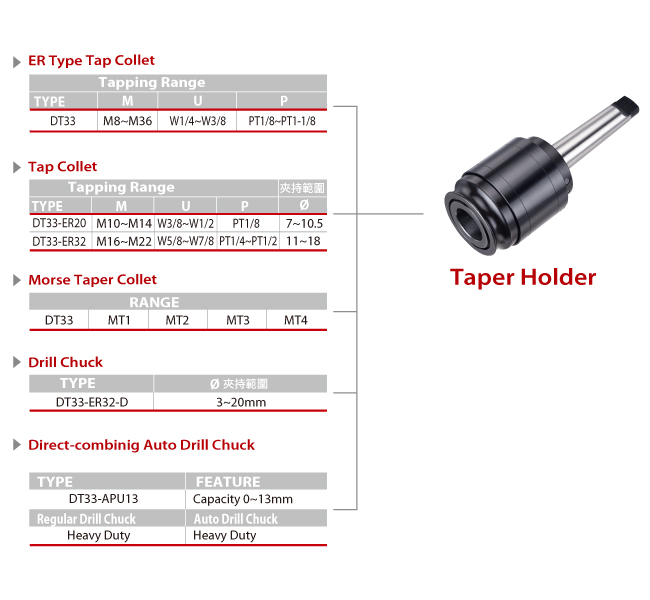

DT Tap Sleeve And Collet Series
Feature
1. Two-stage torque design.
2. Suitable for all tapping specification.
3. Quick and easy operation to improve your working efficiencies.
|
Tapping Range |
|||
|
TYPE |
M |
U |
P |
|
DT33-MTA3 |
M8~M36 |
W1/4~W1-3/8 |
PT1/8~PT1 |
|
DT33-MTA4 |
M8~M36 |
W1/4~W1-3/8 |
PT1/8~PT1 |
|
DT33-MTA5 |
M8~M36 |
W1/4~W1-3/8 |
PT1/8~PT1 |

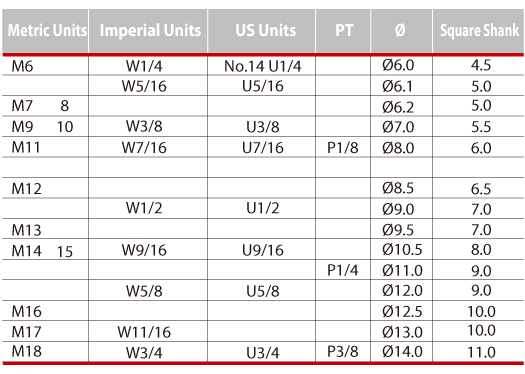

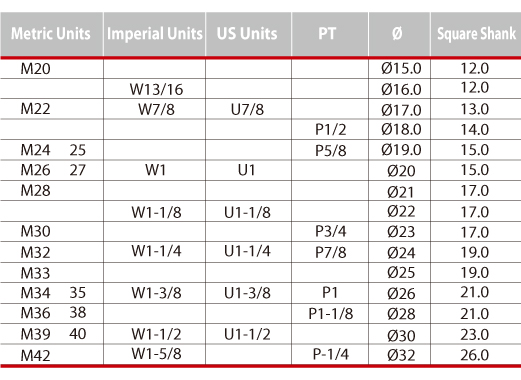

Drilling and Tapping Reference
