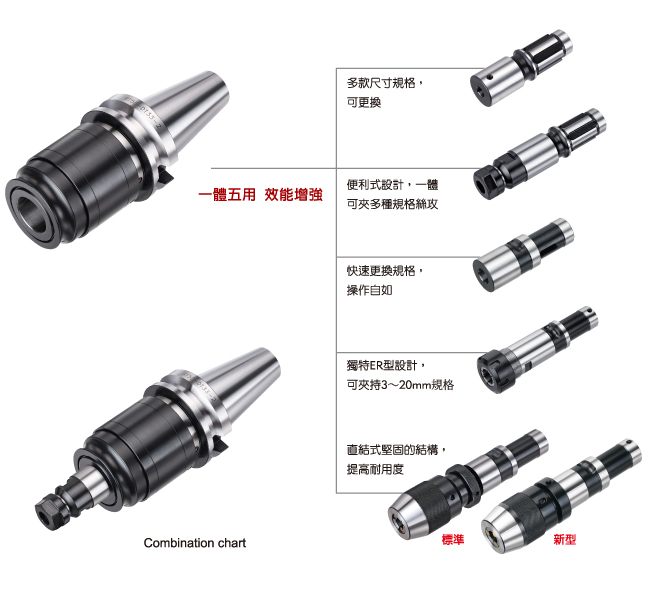

DT Drill Taper Series
Feature
1. Quick peration to change drill chucks and tap collets to improve your working efficiencies.
2. Two-stage torque design and overload safety design.
3. Suitable for all drill and tapping machining.
|
Tapping Range |
|||
|
TYPE |
M |
U |
P |
|
BT50-DT33-2 |
M8~M36 |
W1/4~W1-3/8 |
PT1/8~PT1-1/8 |
|

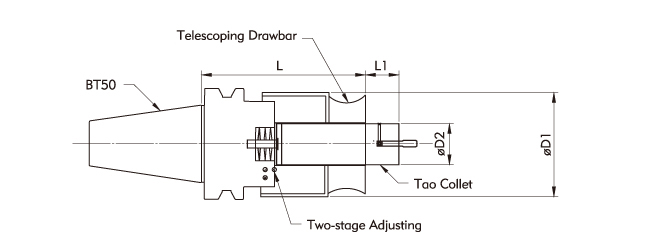

Tapping Range |
Telescoping |
Weight |
|||
|
L |
L1 |
ØD1 |
ØD2 |
|
|
|
142 |
25 |
88 |
38 |
5 |
6.5KG |
