ITEM CODE

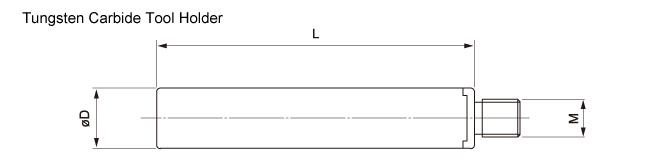

Dimensions(mm)

Applicable Boring Insert Holder

Applicable Collet

D

M

L

SC08-M5-115

8

M5

115

BE09A, BE10.5A

EC1608

SC10-M6-115

10

M6

115

BE12A

EC1610

SC10-M6-135

135

SC10-M6-160

160

SC12-M6-135

12

M6

135

BE14A, BE16A

EC1612

SC12-M6-165

165

SC16-M10-105

16

M10

105

BE18A, BE20A, BE22A,

BE24A, BE26A, BE28A,

BE30A, BE32A, BE34A,

BE36A, BE38A, BE40A,

BE42A, BE44A, BE46A,

BE48A, BE50A

EC1612

SC16-M10-140

140

SC16-M10-180

180
