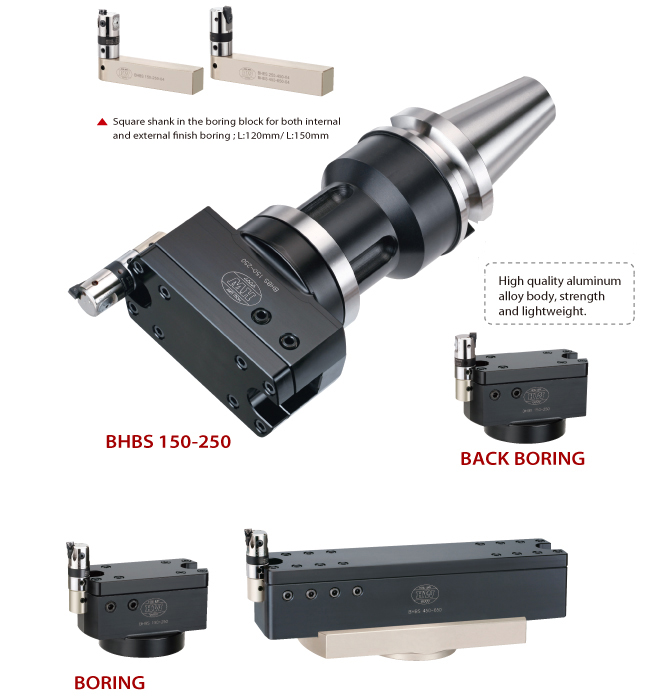

BHBS Large-dia. Finish Boring Head
Feature
1. High quality aluminum alloy body with special treatment to strengthen rigid toughness for both strength and lightweight.
2. Practicability and economy designs.
|

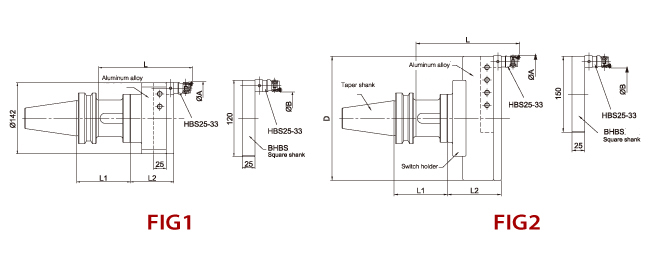

TYPE |
Fig. |
ØA Range |
ØB Range |
Shank |
L |
L1 |
L2 |
Switch holder model |
D |
Assembling weight |
|
BT50-BHBS150-200 |
1 |
150~250 |
100~200 |
BT50-BST-105 |
182 |
105 |
85 |
- |
- |
3.4 KG |
|
BHBS150-300 |
BT50-BST-200 |
282 |
200 |
|||||||
|
BHBS150-400 |
BT50-BST-300 |
382 |
300 |
|||||||
|
BHBS150-500 |
BT50-BST-400 |
482 |
400 |
|||||||
|
BHBS250-200 |
2 |
250~450 |
200~400 |
BT50-BST-105 |
202 |
105 |
75 |
BST200-250-02 |
245 |
6.3 KG |
|
BHBS250-300 |
BT50-BST-200 |
302 |
200 |
|||||||
|
BHBS250-400 |
BT50-BST-300 |
402 |
300 |
|||||||
|
BHBS250-500 |
BT50-BST-400 |
502 |
400 |
|||||||
|
BHBS450-200 |
2 |
450~650 |
300~500 |
BT50-BST-105 |
202 |
105 |
75 |
BST300-350-02 |
345 |
8.8 KG |
|
BHBS450-300 |
BT50-BST-200 |
302 |
200 |
|||||||
|
BHBS450-400 |
BT50-BST-300 |
402 |
300 |
|||||||
|
BHBS450-500 |
BT50-BST-400 |
502 |
400 |
Assembling weight (Not including taper shank)
