Tool Holder Locking Device-B type
CAST ALUMINUM ALLOY BODY
．Vertical and horizontal configuration.
．Applicate to BT, CAT, DIN tapers.
|

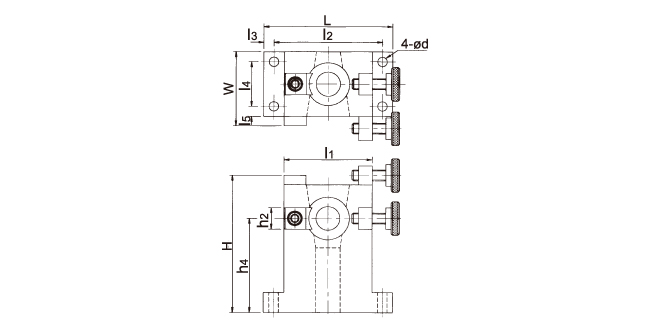

MODEL No. |
Type |
L |
I1 |
I2 |
I3 |
I4 |
H |
W |
N.W. |
G.W. |
Shipment Size |
|
LD-30B |
30 |
95 |
65 |
80 |
7.5 |
33 |
100 |
58 |
0.9kg |
1kg |
13x10x16cm |
|
LD-40B |
40 |
118 |
77 |
99 |
9.2 |
44 |
130 |
75 |
1.6kg |
1.7kg |
13x10x16cm |
|
LD-50B |
50 |
170 |
92 |
110 |
12 |
53 |
185 |
115 |
5.1kg |
5.4kg |
29.5x17x21cm |
