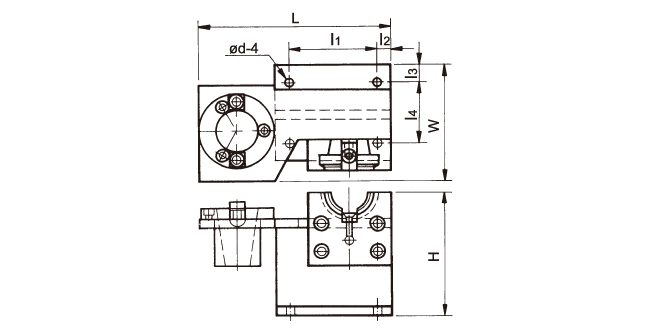

Tool Holder Locking Device-A type
CAST IRON BODY
·Vertical tool: aluminum.
|
MODEL No. |
Type |
L |
I1 |
I2 |
I3 |
I4 |
H |
W |
N.W. |
G.W. |
Shipment Size |
|
LD-BT30A |
BT-30 |
210 |
95 |
10 |
15 |
67 |
130 |
100 |
3.6kg |
3.7kg |
22x11.5x14cm |
|
LD-BT40A |
BT-40 |
210 |
95 |
10 |
15 |
67 |
130 |
100 |
3.7kg |
3.9kg |
22x11.5x14cm |
|
LD-BT50A |
BT-50 |
275 |
113 |
20 |
24 |
105 |
200 |
150 |
11kg |
11.4kg |
29.5x17x21cm |
|
LD-DIN40A |
DIN40 |
210 |
95 |
10 |
15 |
67 |
130 |
100 |
3.6kg |
3.8kg |
22x11.5x14cm |
|
LD-DIN50A |
DIN50 |
275 |
113 |
20 |
24 |
105 |
200 |
150 |
10.8kg |
11.2kg |
29.5x17x21cm |
|
LD-CAT40A |
CAT40 |
210 |
95 |
10 |
15 |
67 |
130 |
100 |
3.6kg |
3.8kg |
22x11.5x14cm |
|
LD-CAT50A |
CAT50 |
275 |
113 |
20 |
24 |
105 |
200 |
150 |
10.5kg |
11.2kg |
29.5x17x21cm |
